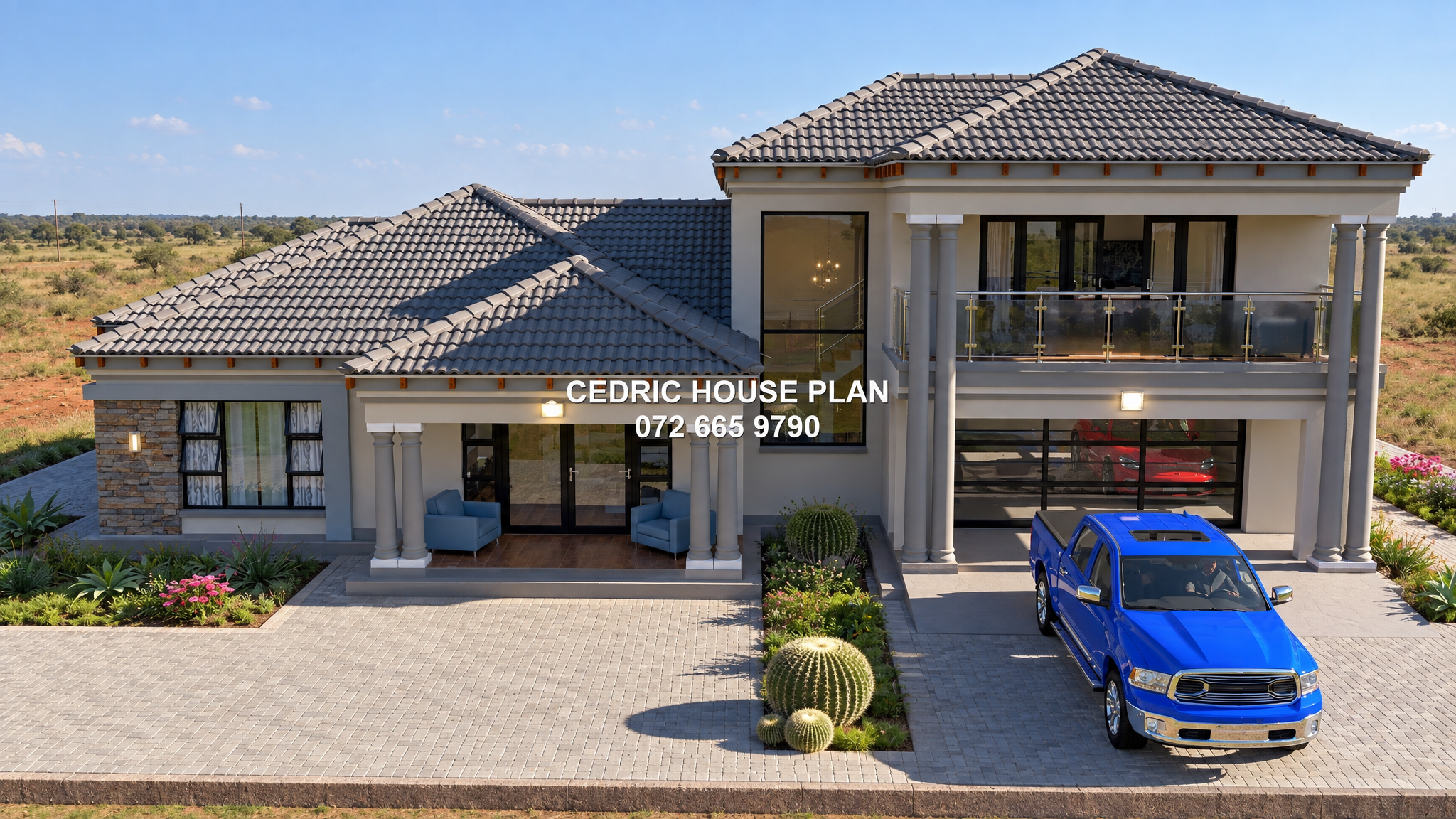

4 BEDROOMS DOUBLE STOREY

GROUND FLOOR

3 BED

1 ENSUITE

1 BATH

KITCHEN

LOUNGE

DINING

GARAGE

SCULLERY

TOP FLOOR

MAIN BED

ENSUITE AND CLOSET

Design Description

GROUND FLOOR:

•Bedroom

  • Floor Area: 16.40 m²
  • Description: at the upper left, opening off the passage and next to the bathroom; contains a bed and chair.

•Bedroom

  • Floor Area: 17.111 m²
  • Description: at the upper centre-left, opening off the passage and above the lounge/dining; contains a bed and chair.

•Bathroom

  • Floor Area: 10.641 m²
  • Description: at the left side off the passage, between the upper-left bedroom and the ensuite; contains bath, shower, basin and WC.

•Ensuite

  • Floor Area: 8.473 m²
  • Description: at the lower left off the passage, beside the closet and above the main bedroom; contains bath, shower, basin and WC.

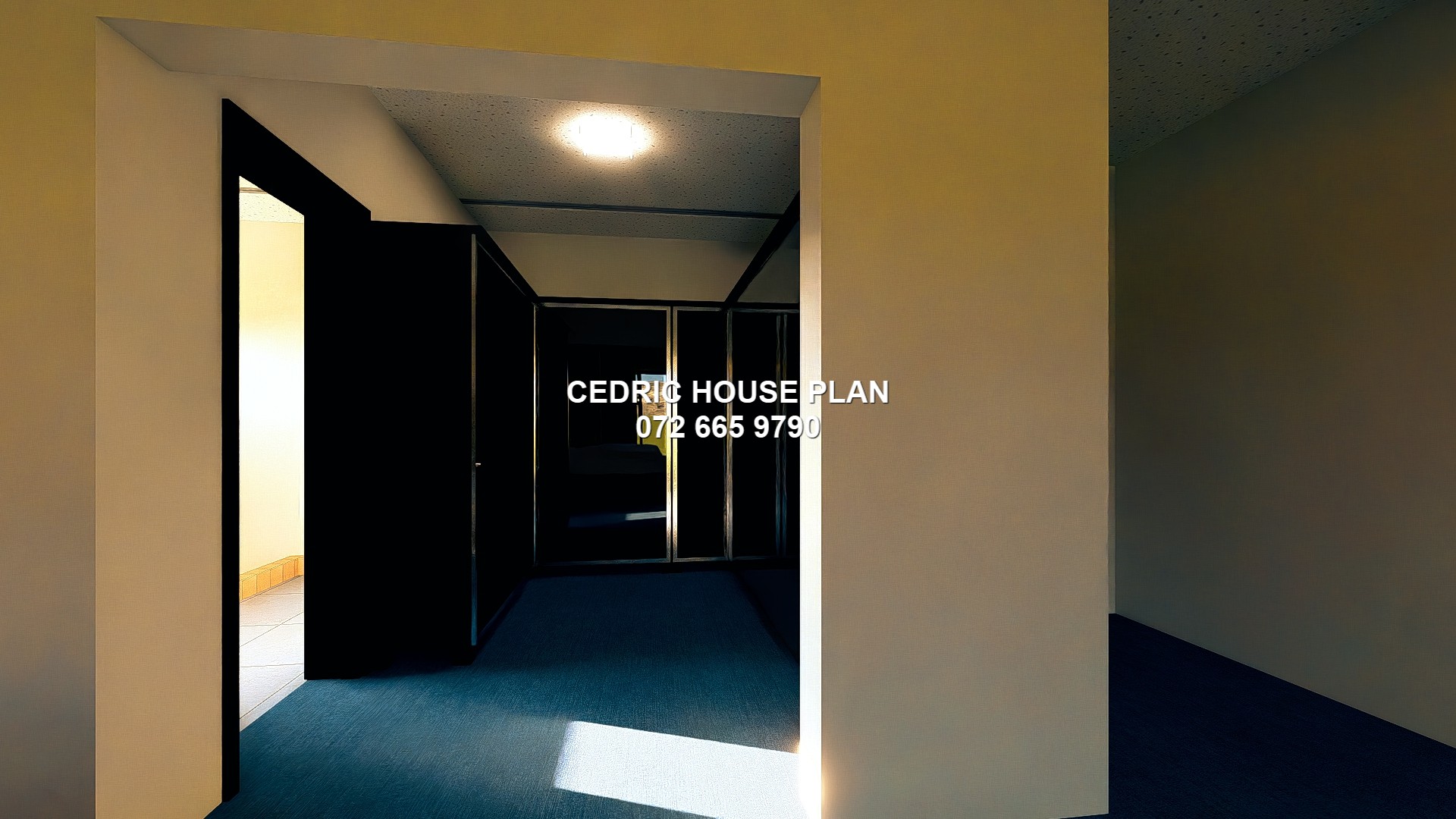

•Closet

  • Floor Area: 9.898 m²
  • Description: between the ensuite and the passage, above the main bedroom; contains closet space only.

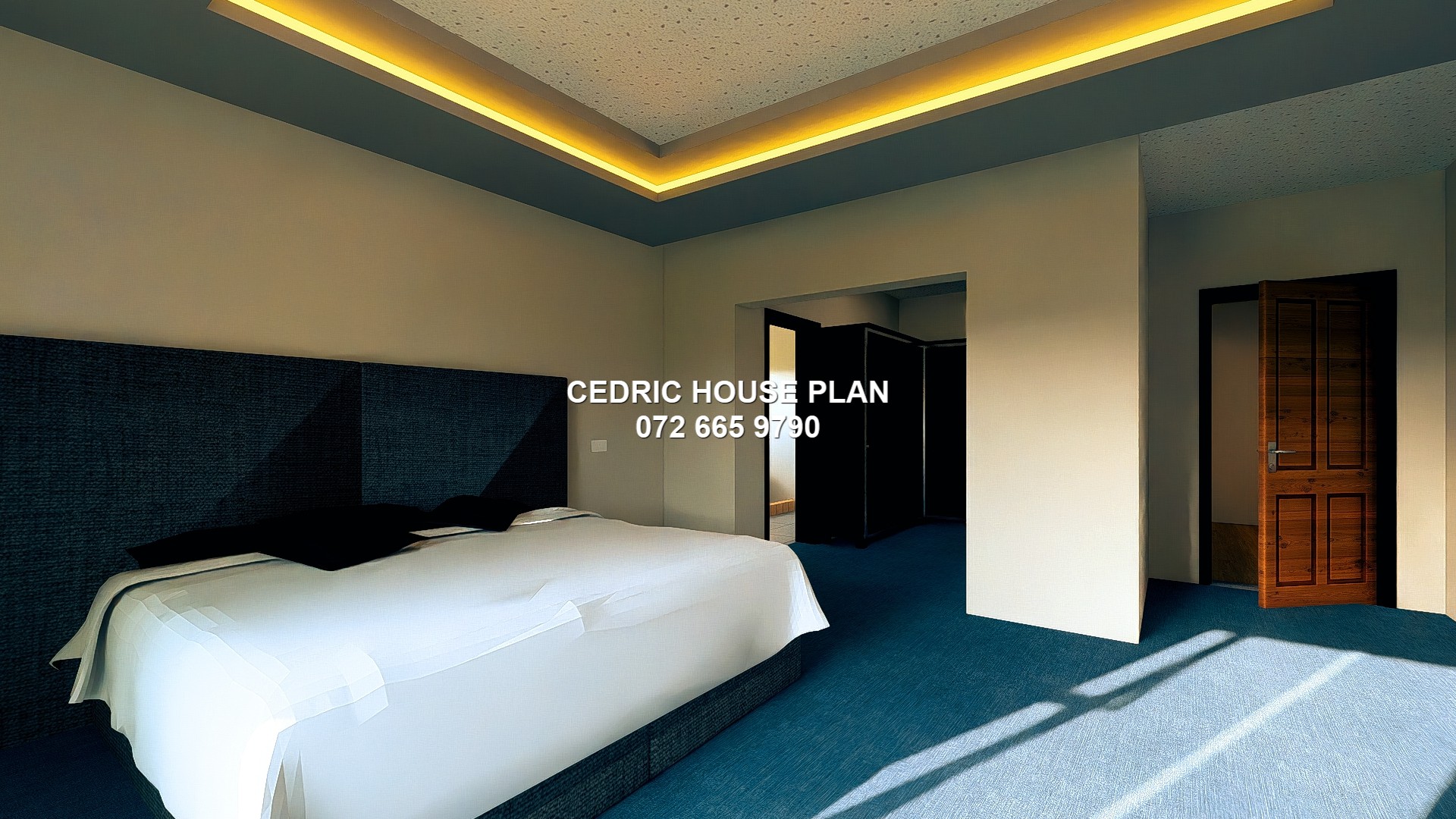

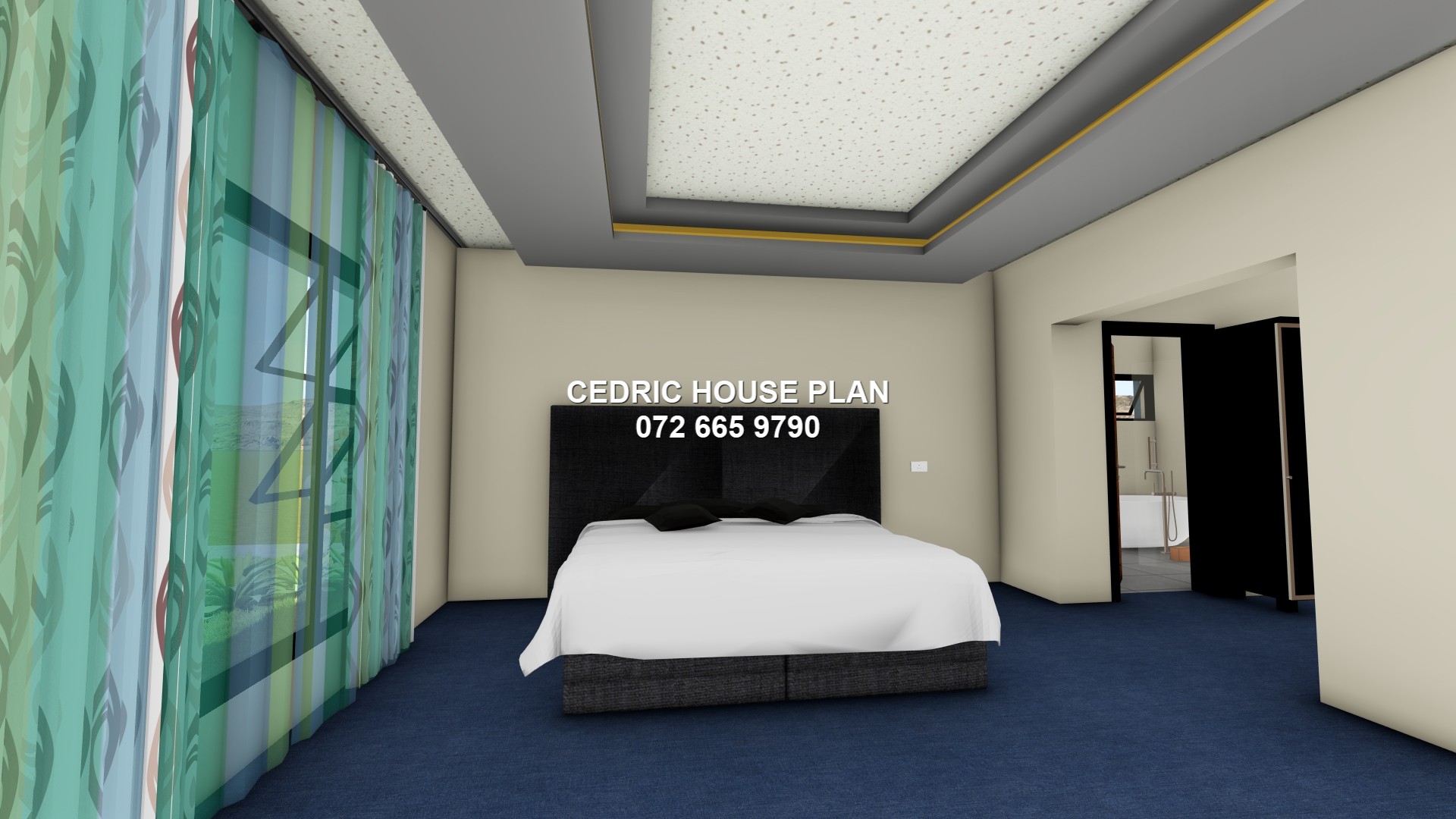

•Main Bedroom

  • Floor Area: 24.127 m²
  • Description: at the lower left, opening off the lounge/dining and below the ensuite/closet; contains a bed and chairs.

•Passage

  • Floor Area: 11.825 m²
  • Description: central left, linking the two upper bedrooms, bathroom, ensuite/closet area and lounge/dining; contains doors only.

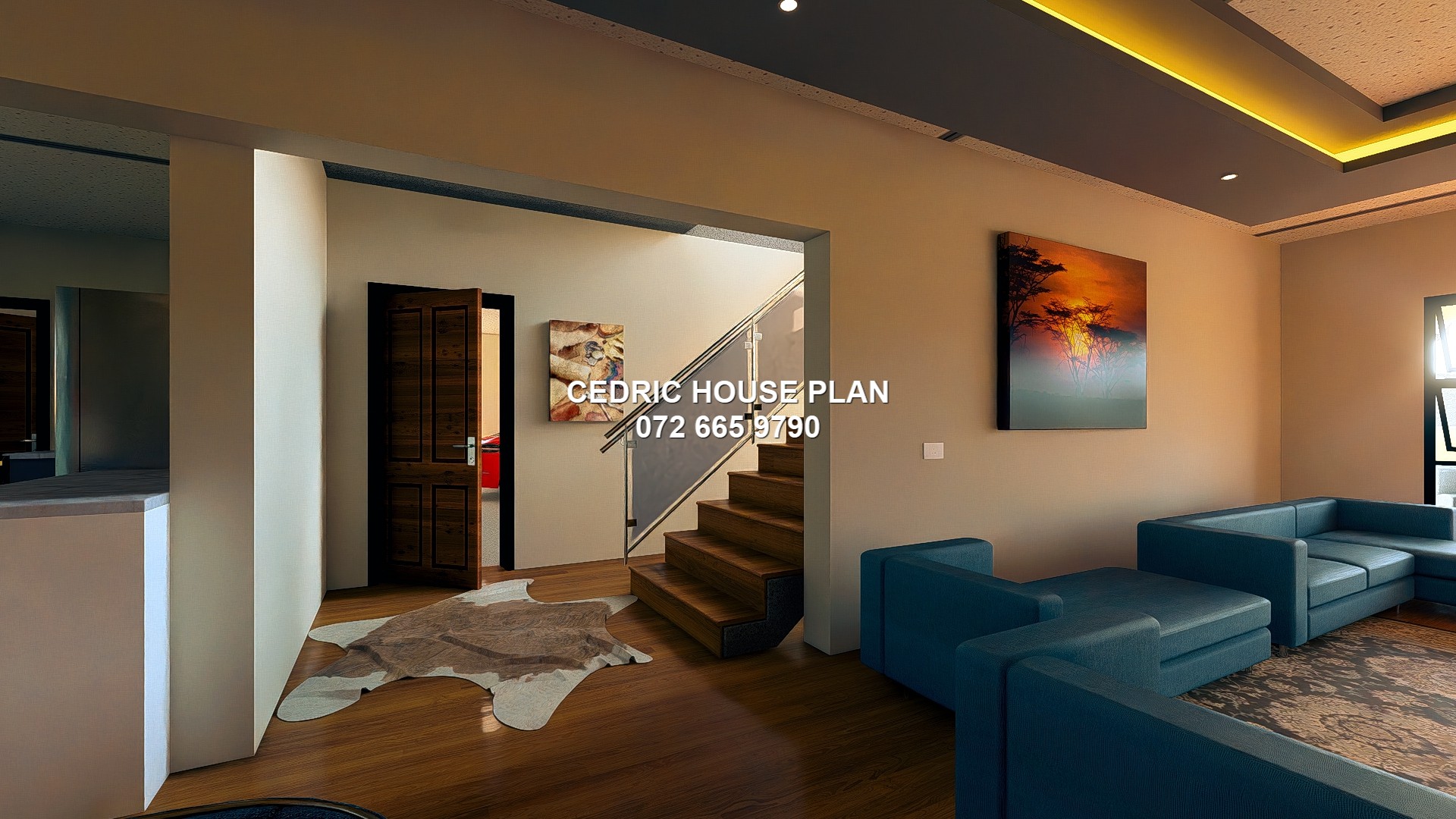

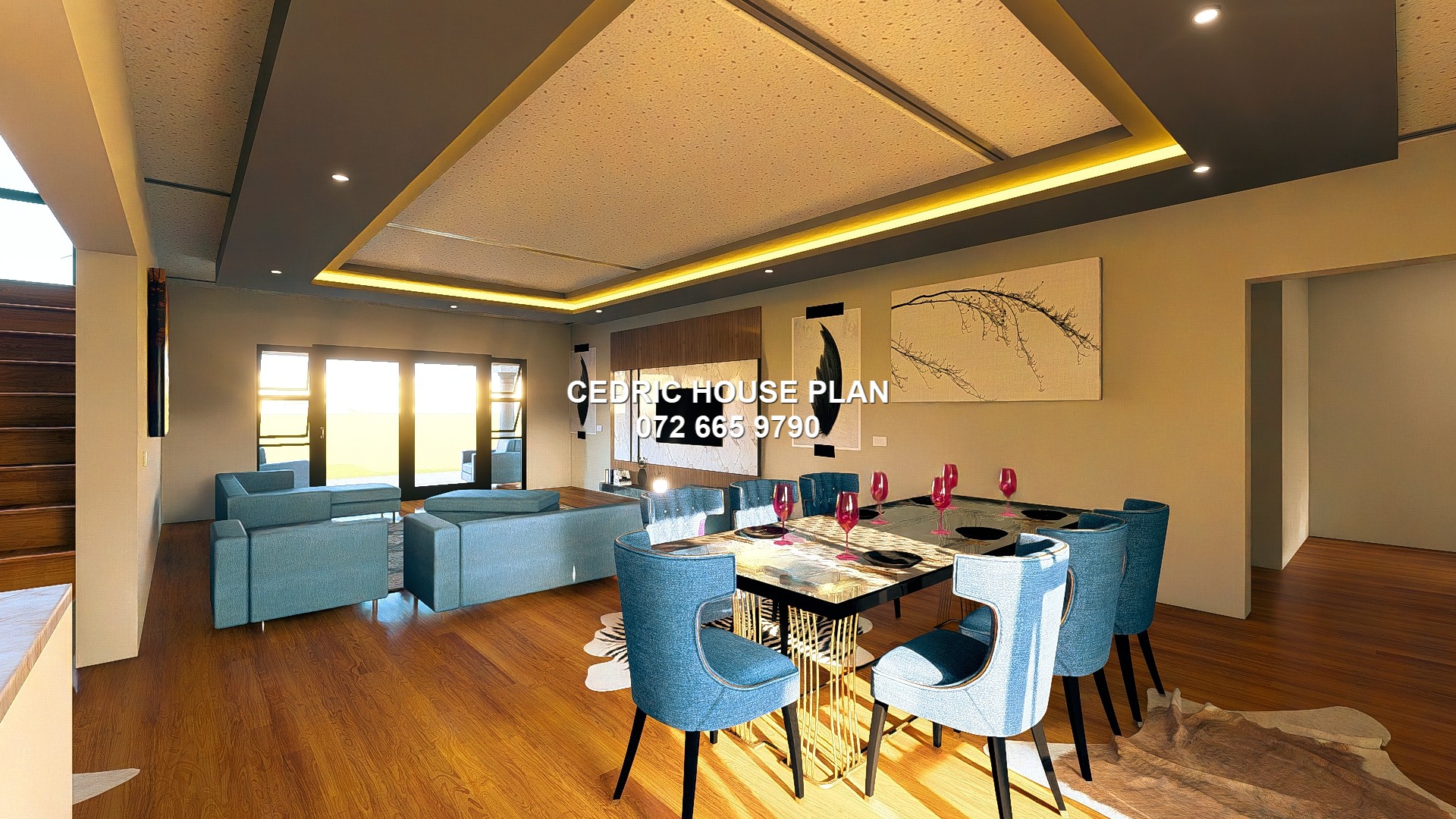

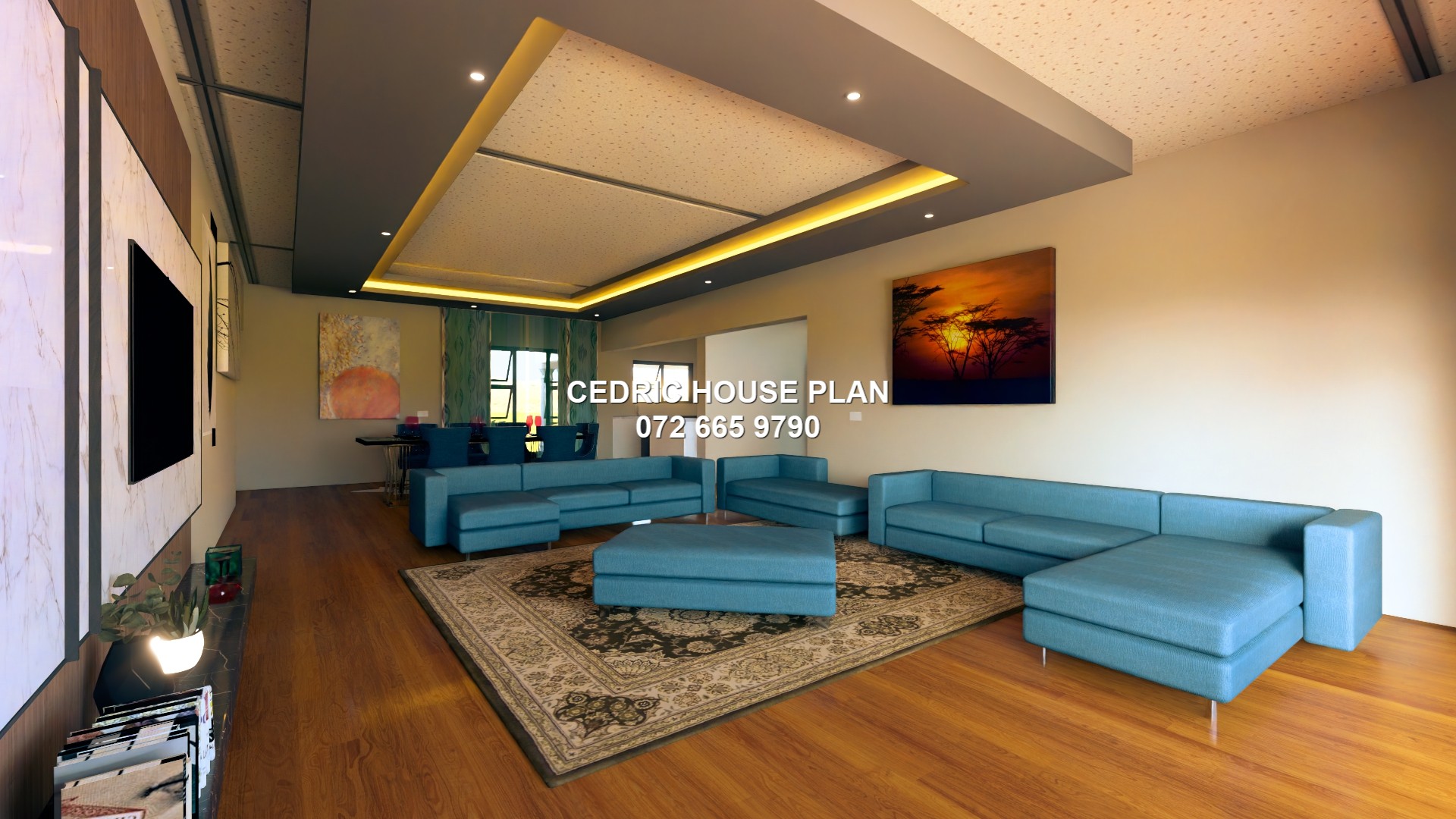

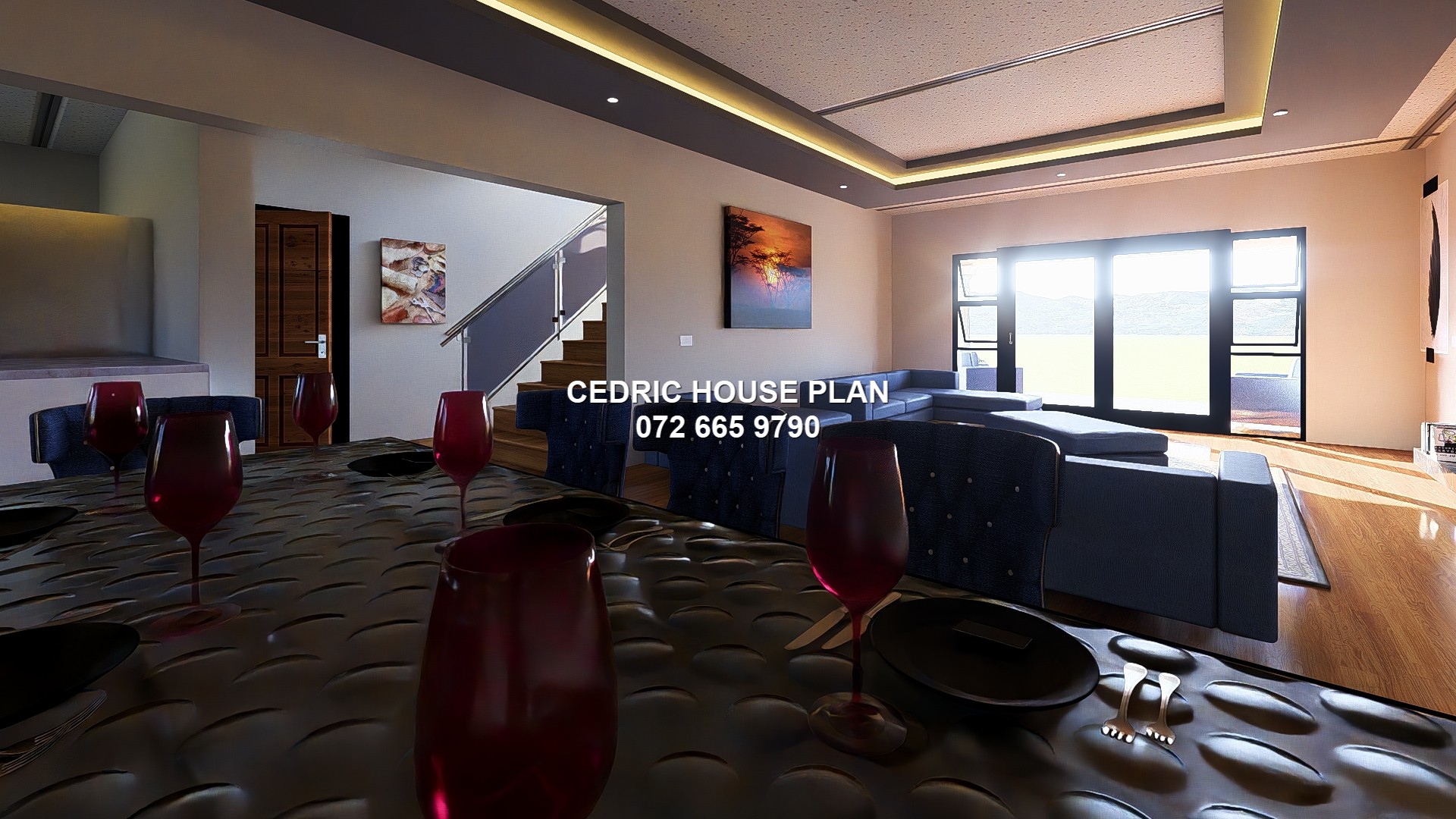

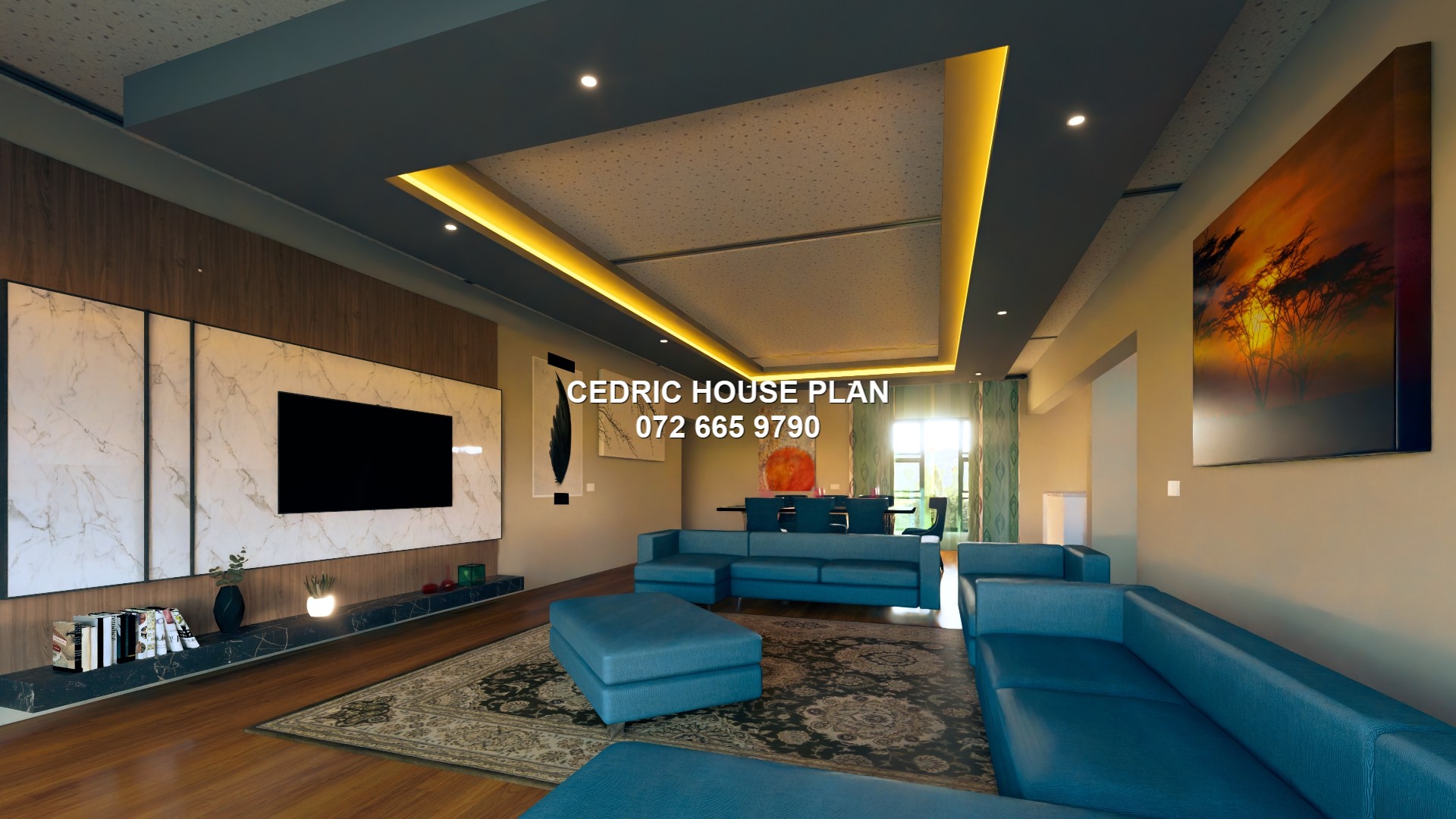

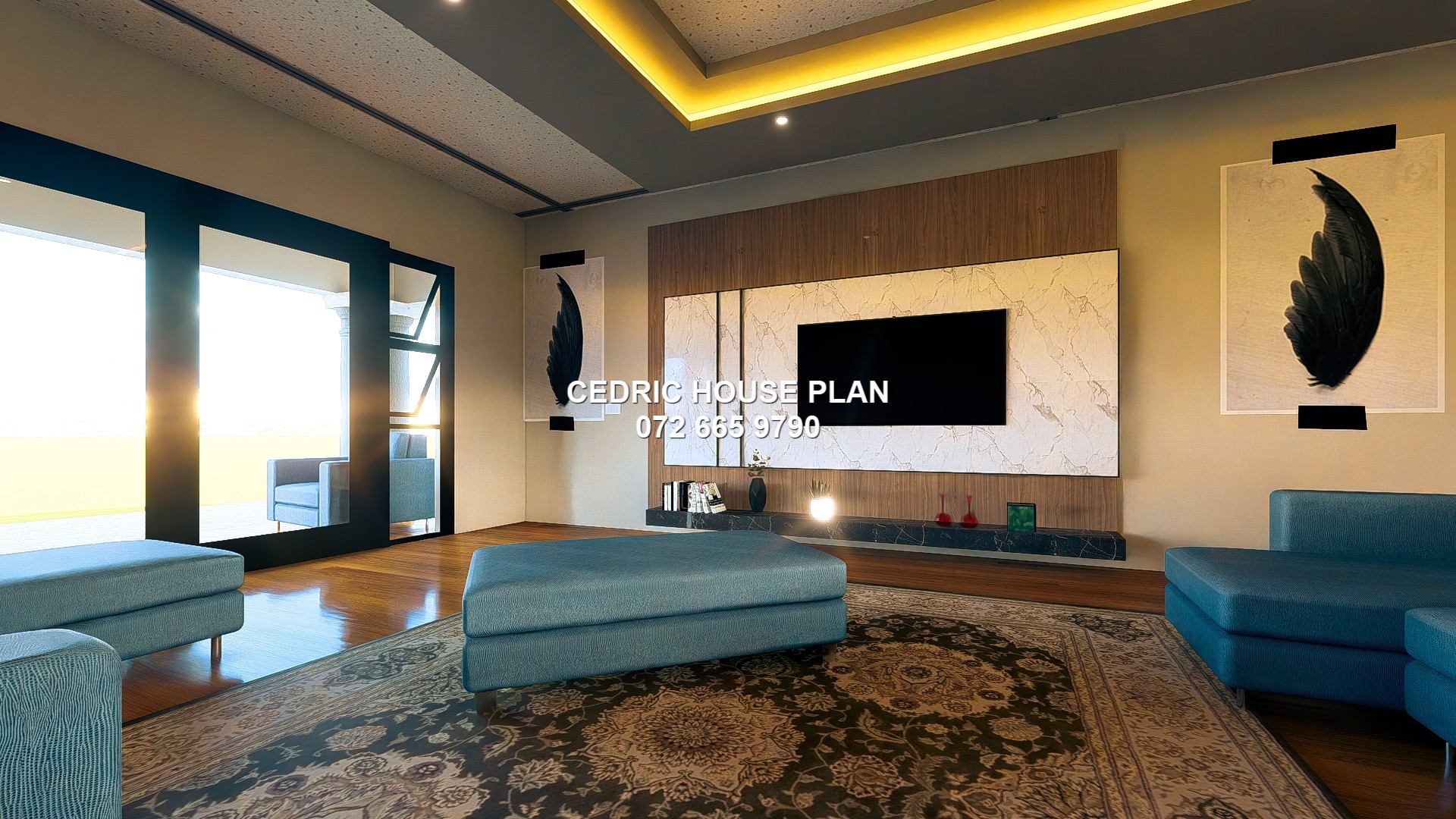

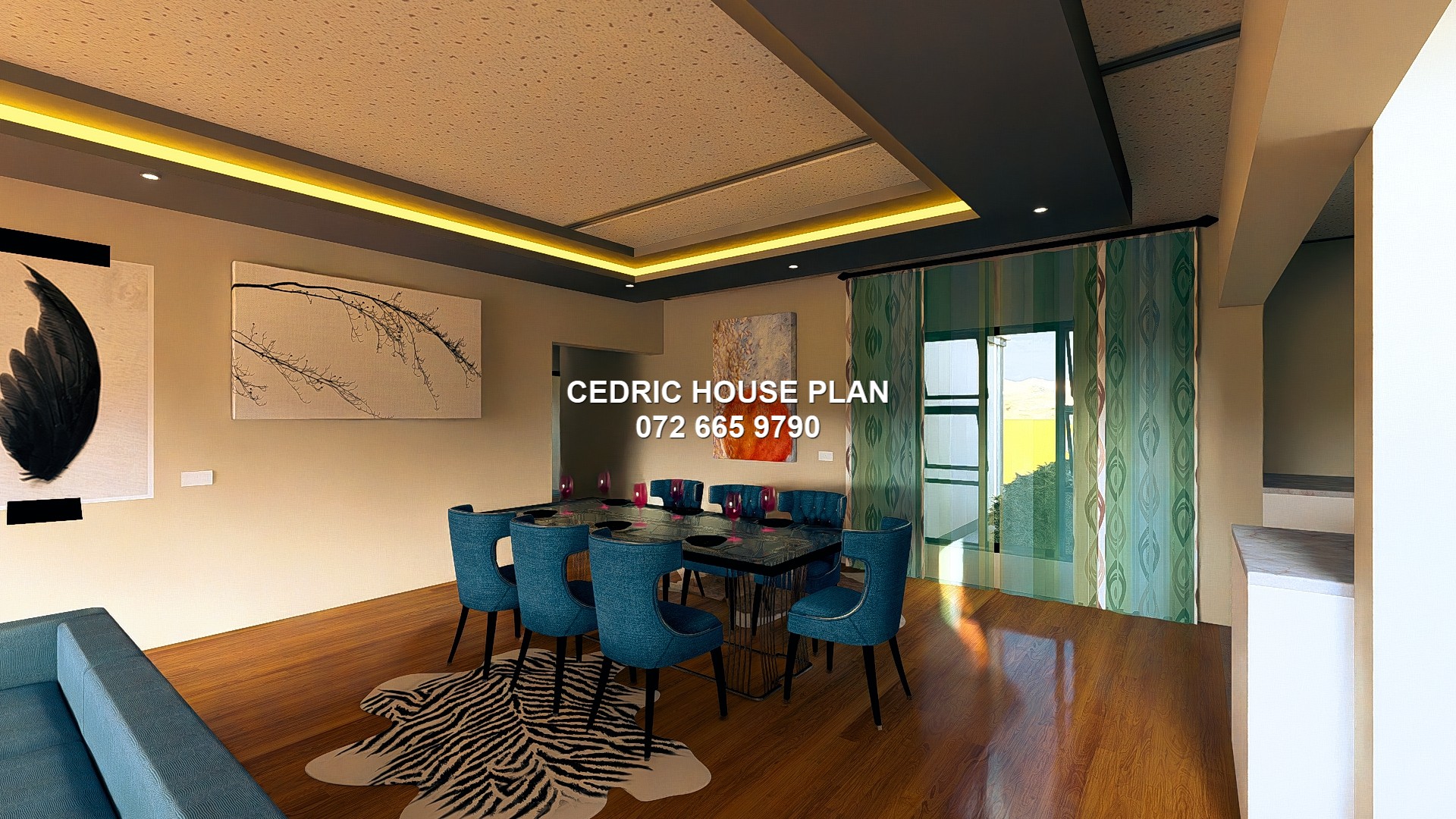

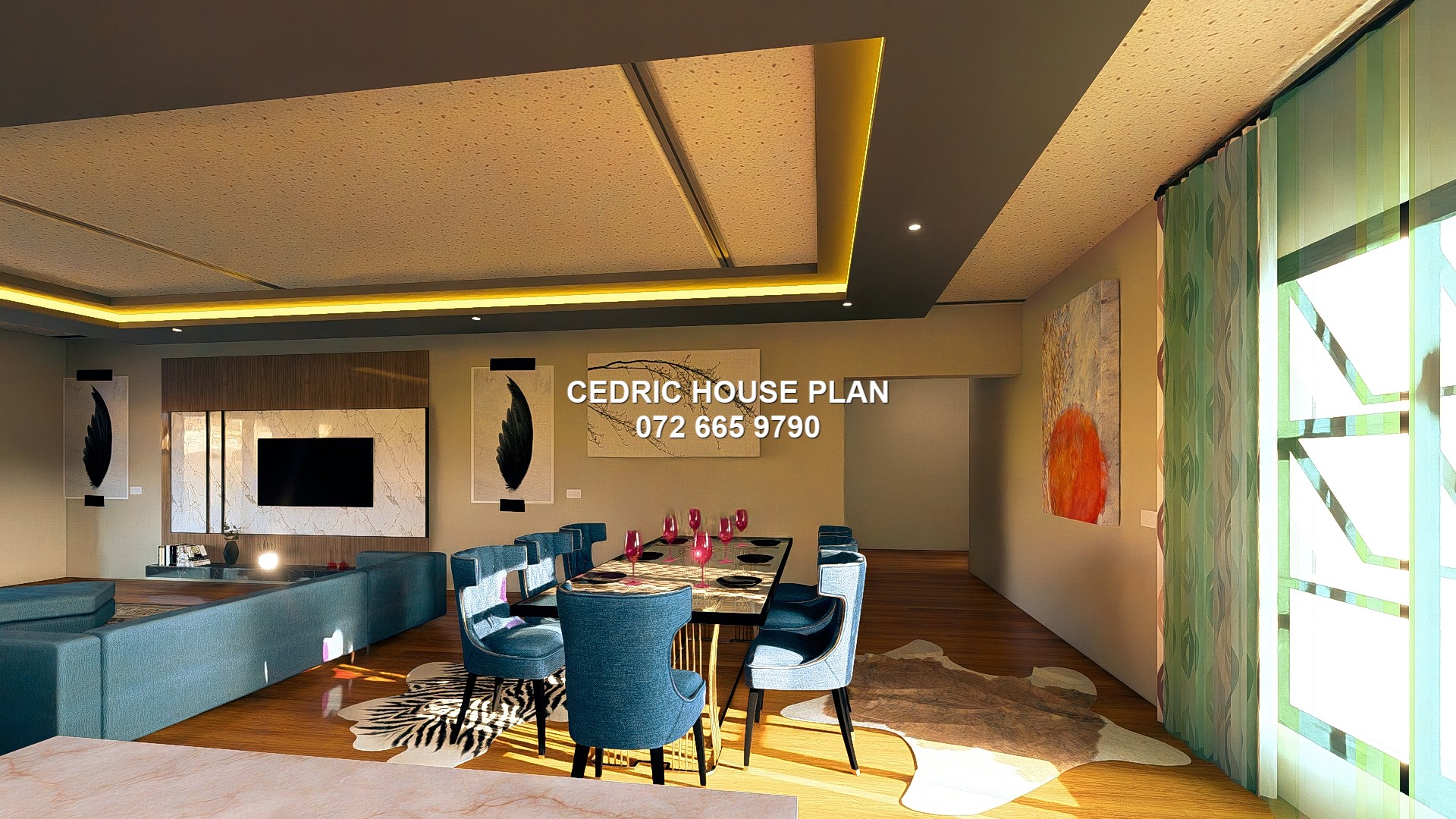

•Lounge/Dining

  • Floor Area: 53.380 m²
  • Description: in the centre, below the bedrooms and passage, left of the stairs and opening to the front patio; contains dining table and chairs, sofas, TV unit and sliding doors.

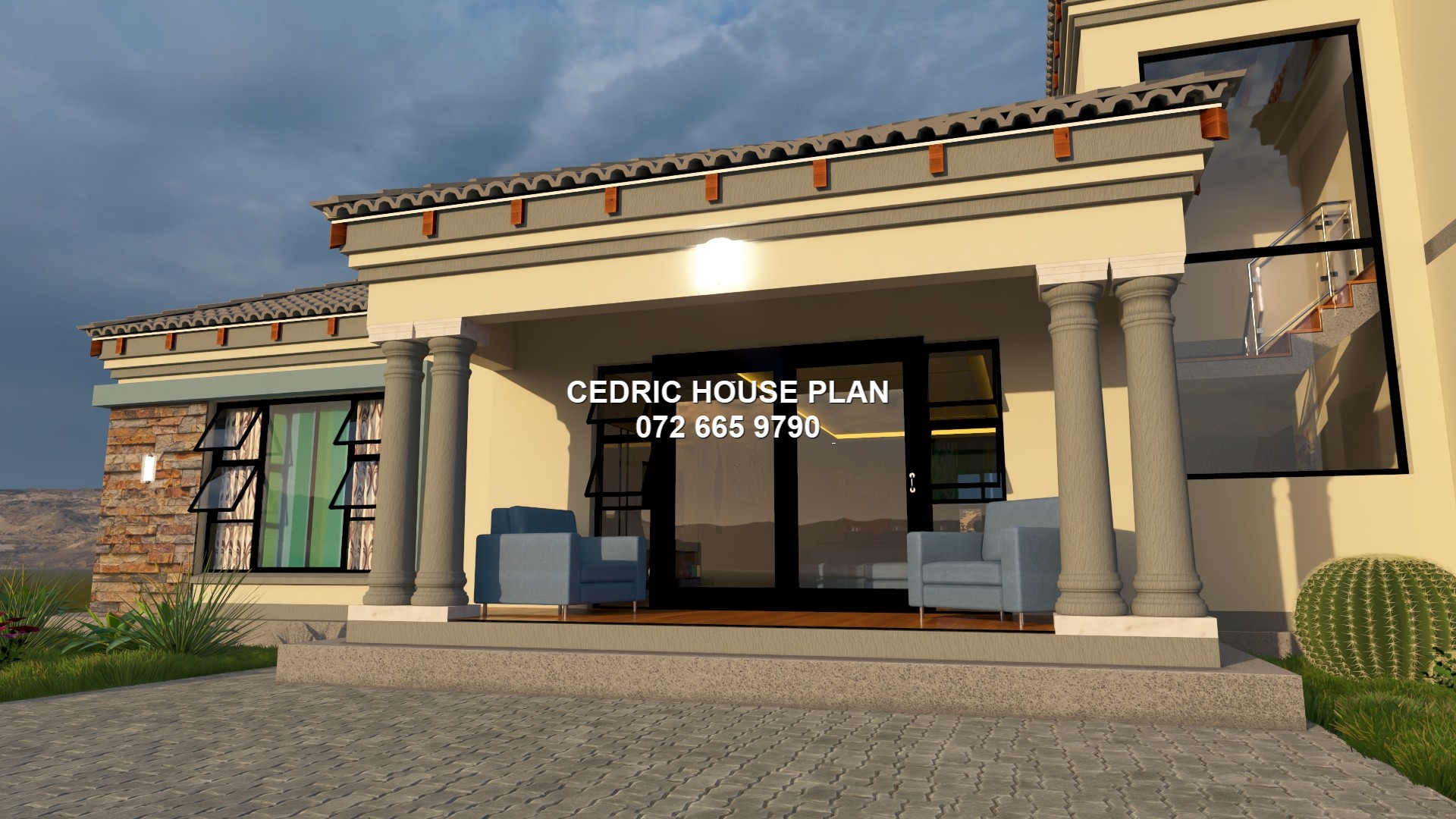

•Patio

  • Floor Area: 4.973 m²
  • Description: at the front/bottom centre off the lounge/dining; contains outdoor chairs.

•Kitchen

  • Floor Area: 18.242 m²
  • Description: upper centre-right, between the patio and stairs and left of the bedroom; contains counters, sink, stove/cooktop and fridge space.

•Patio

  • Floor Area: 13.625 m²
  • Description: at the rear/top right, opening off the kitchen; contains outdoor seats.

•Bedroom

  • Floor Area: 8.502 m²
  • Description: at the upper right, right of the kitchen and below the rear patio; contains a bed.

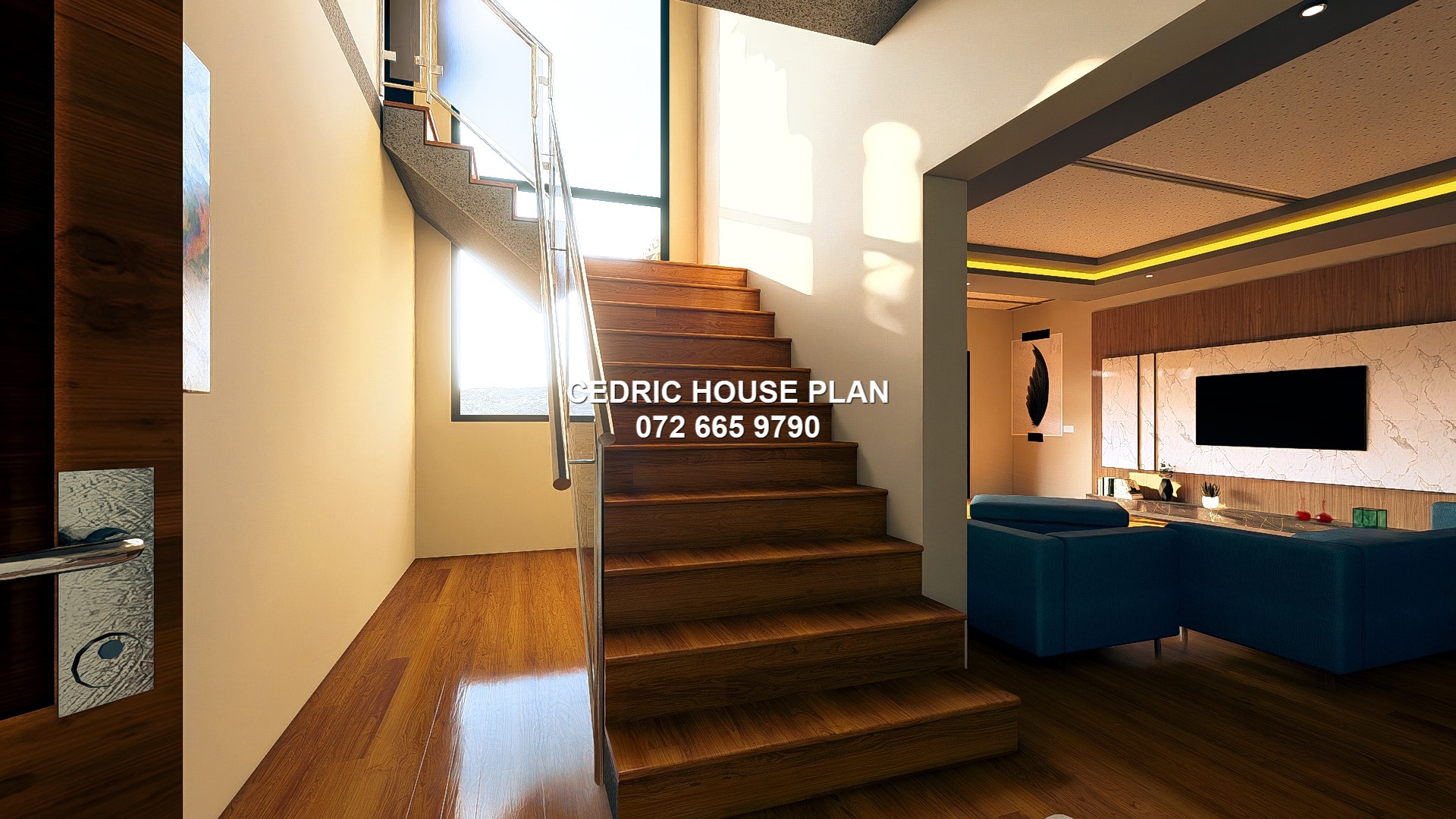

•Stairs

  • Floor Area: 15.988 m²
  • Description: centre-right, between the lounge/dining and garage and below the kitchen; contains staircase.

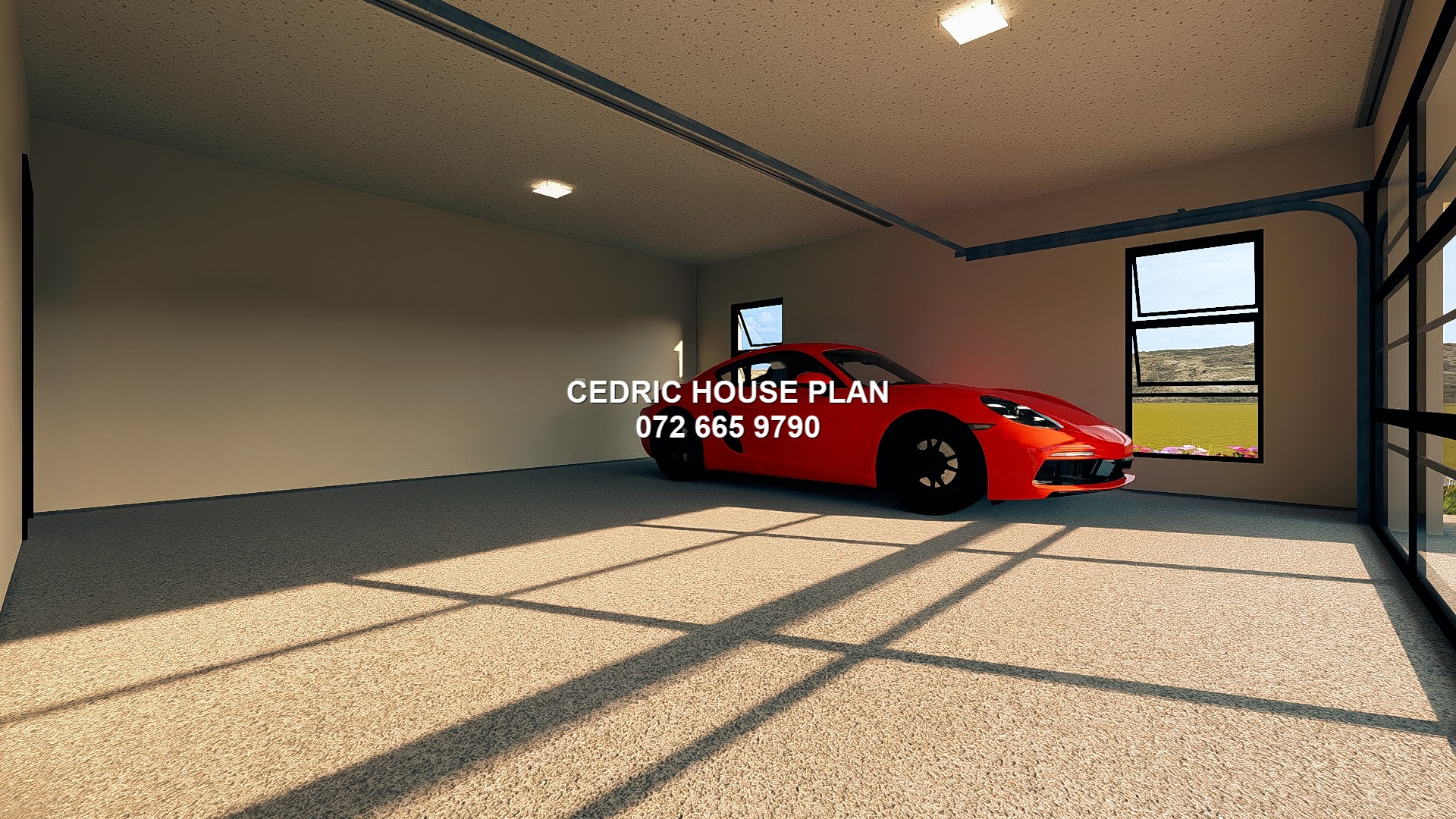

•Garage

  • Floor Area: 42.959 m²
  • Description: at the right side, beside the stairs and below the small bedroom; contains vehicle bay space.

FIRST FLOOR:

•Closet

  • Floor Area: 11.205 m²
  • Description: at the upper left of this level, off the stair landing and beside the main bedroom; contains closet space only.

•Ensuite

  • Floor Area: 10.726 m²
  • Description: at the upper right, above the main bedroom and beside the top balcony; contains bath, shower, double basins and WC.

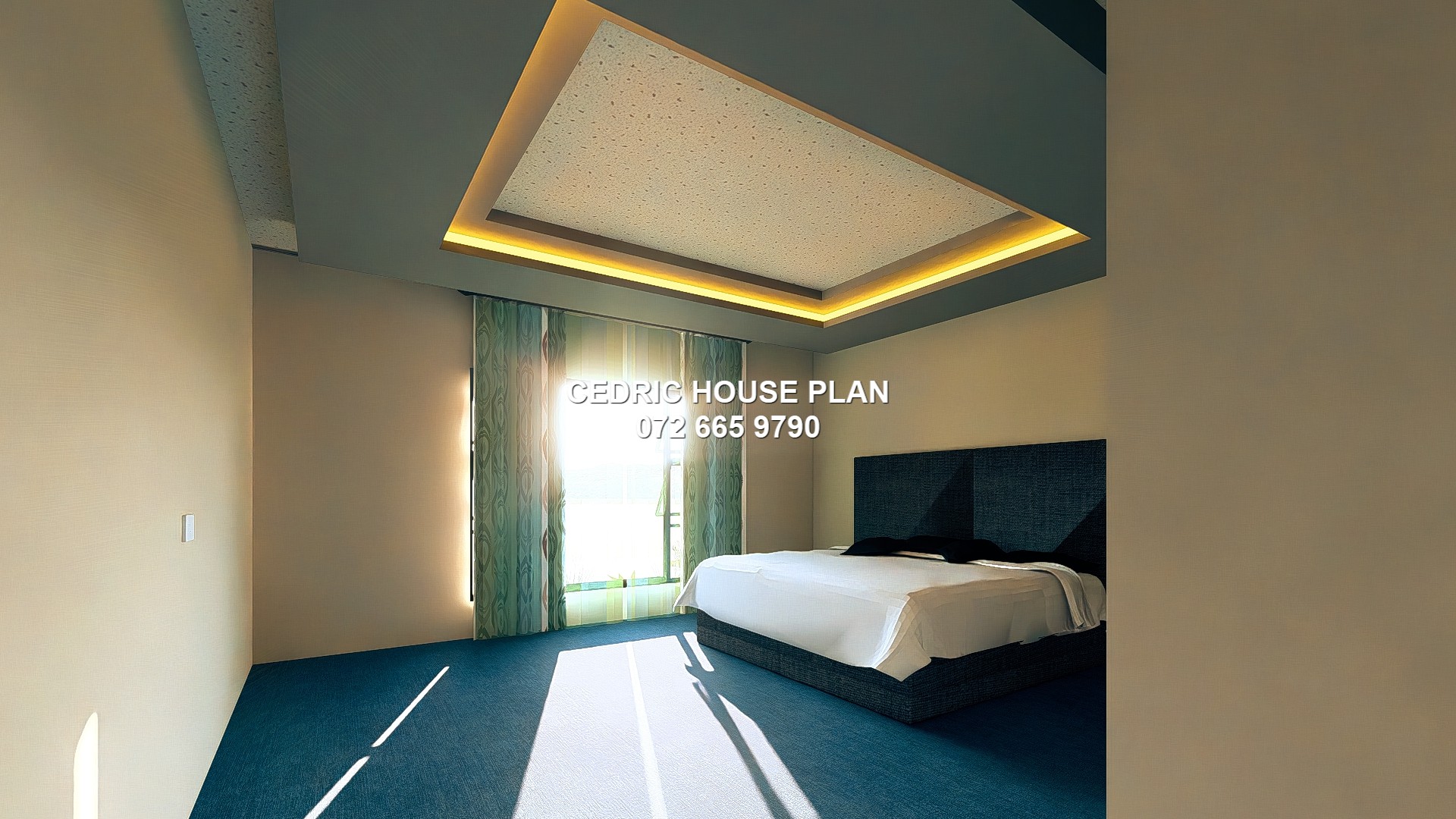

•Main Bedroom

  • Floor Area: 28.508 m²
  • Description: central on this level, below the ensuite and right of the stairs/closet, with balconies to front and rear; contains a bed and chairs.

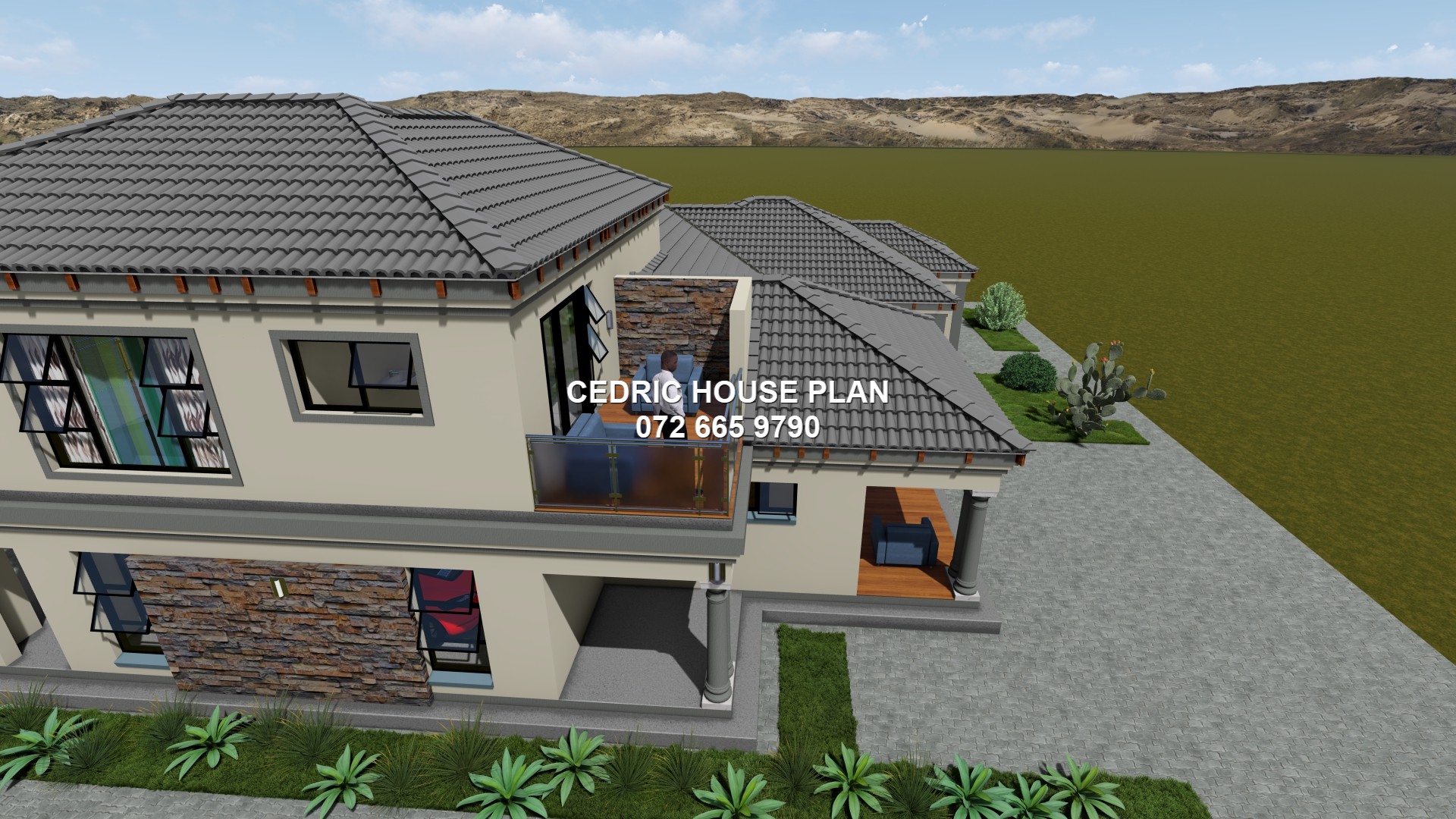

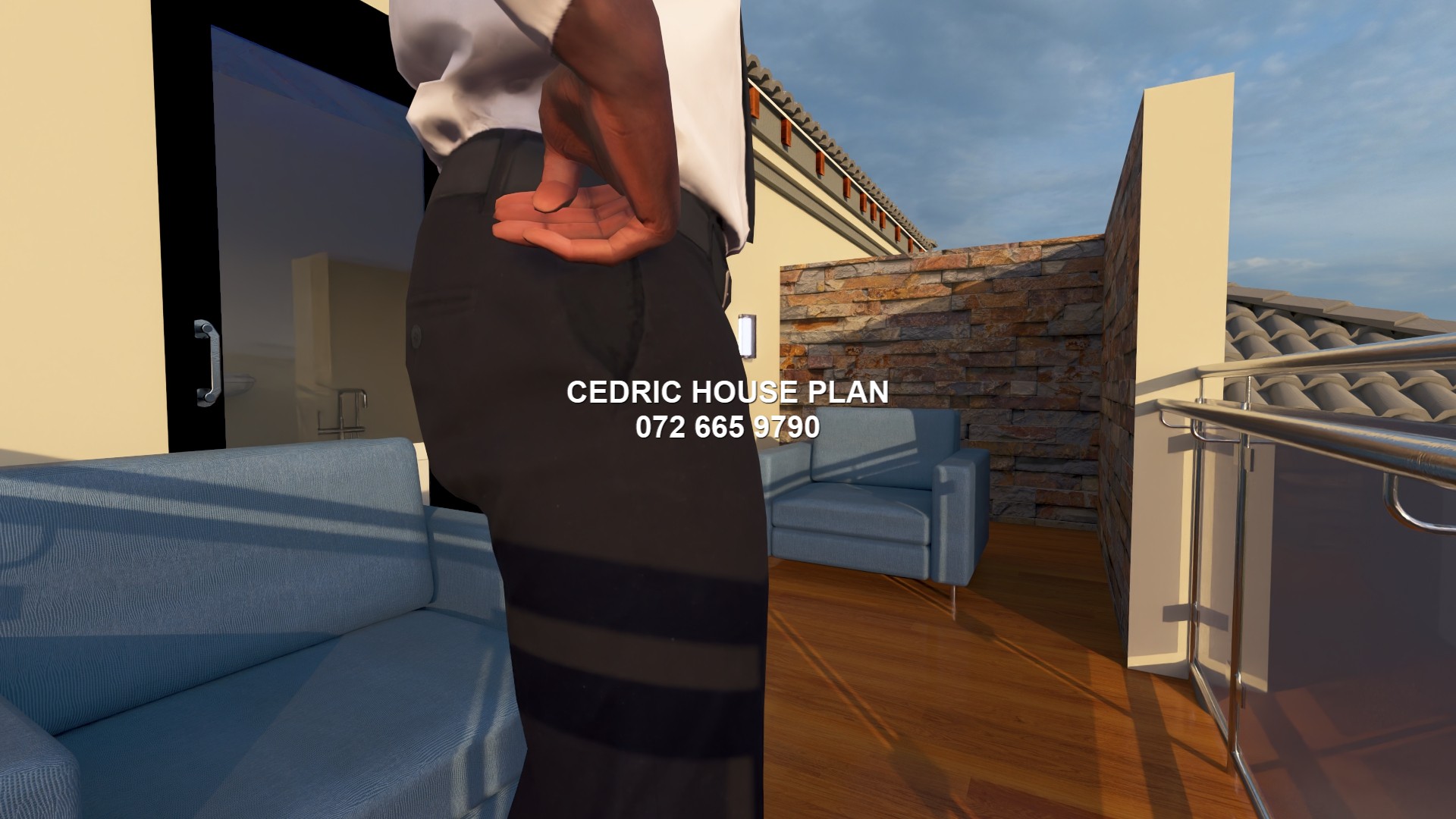

•Balcony

  • Floor Area: 10.117 m²
  • Description: at the top/right side off the ensuite/main bedroom; contains outdoor seats.

•Balcony

  • Floor Area: 10.687 m²
  • Description: at the bottom/front off the main bedroom; contains outdoor seats.

•Stairs (size not shown): at the left side, leading up to the landing between the closet and main bedroom; contains staircase.

4
Bedrooms
3
Bathrooms
2
Levels
286 m²
Floor Area
2
Garages
18.5 m
Length
22 m
Width
Price
R 4 196,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
