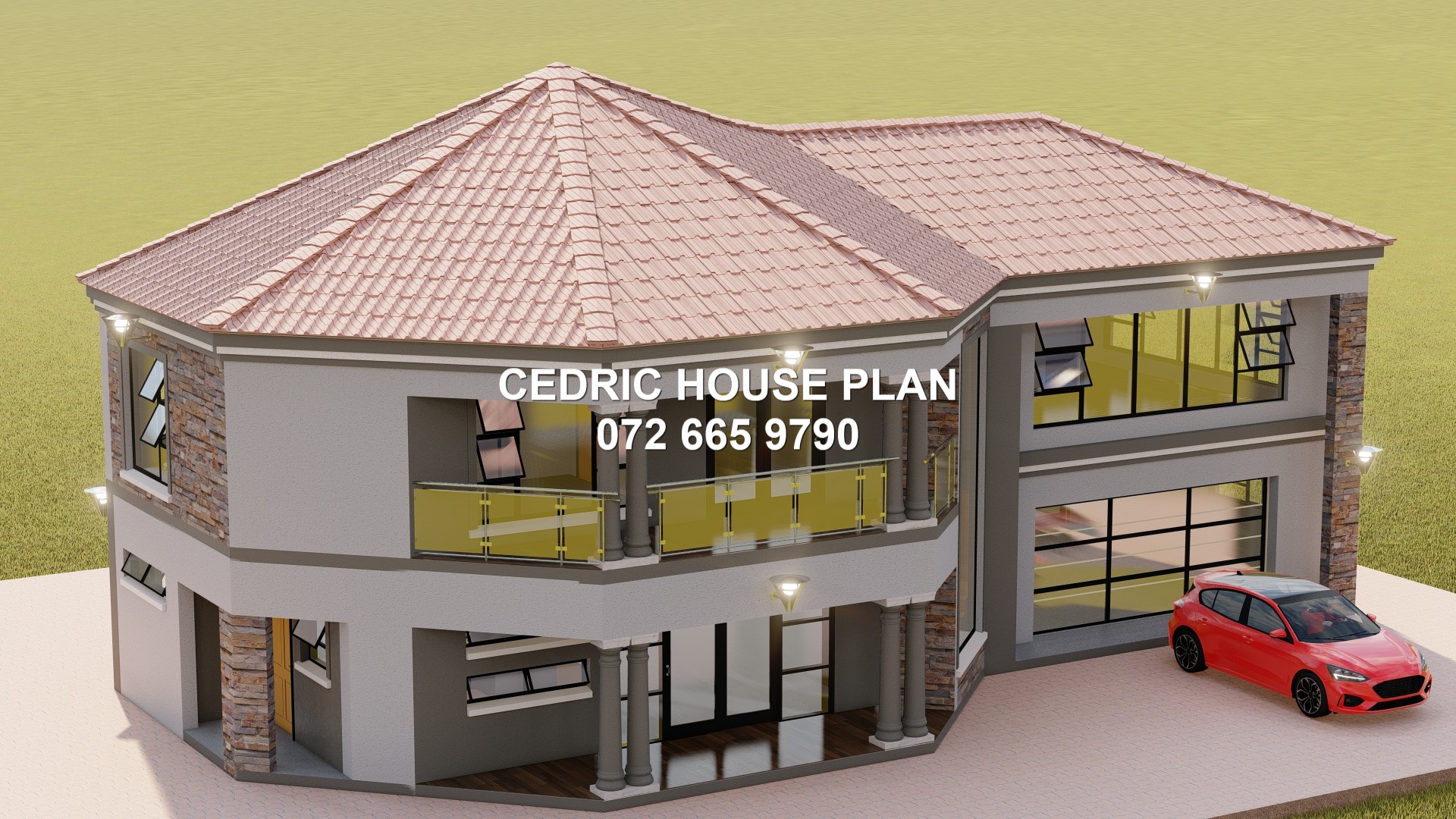

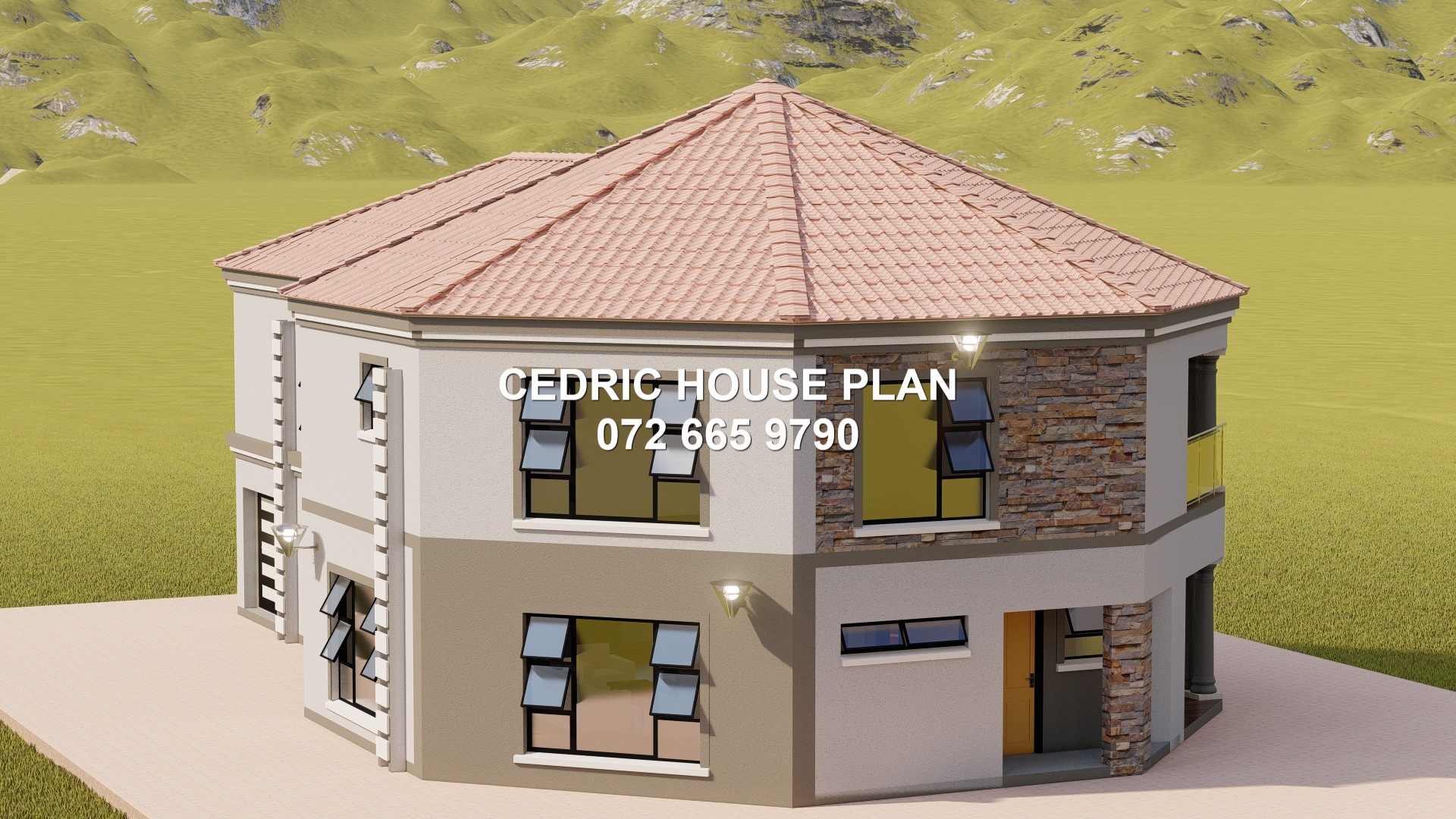

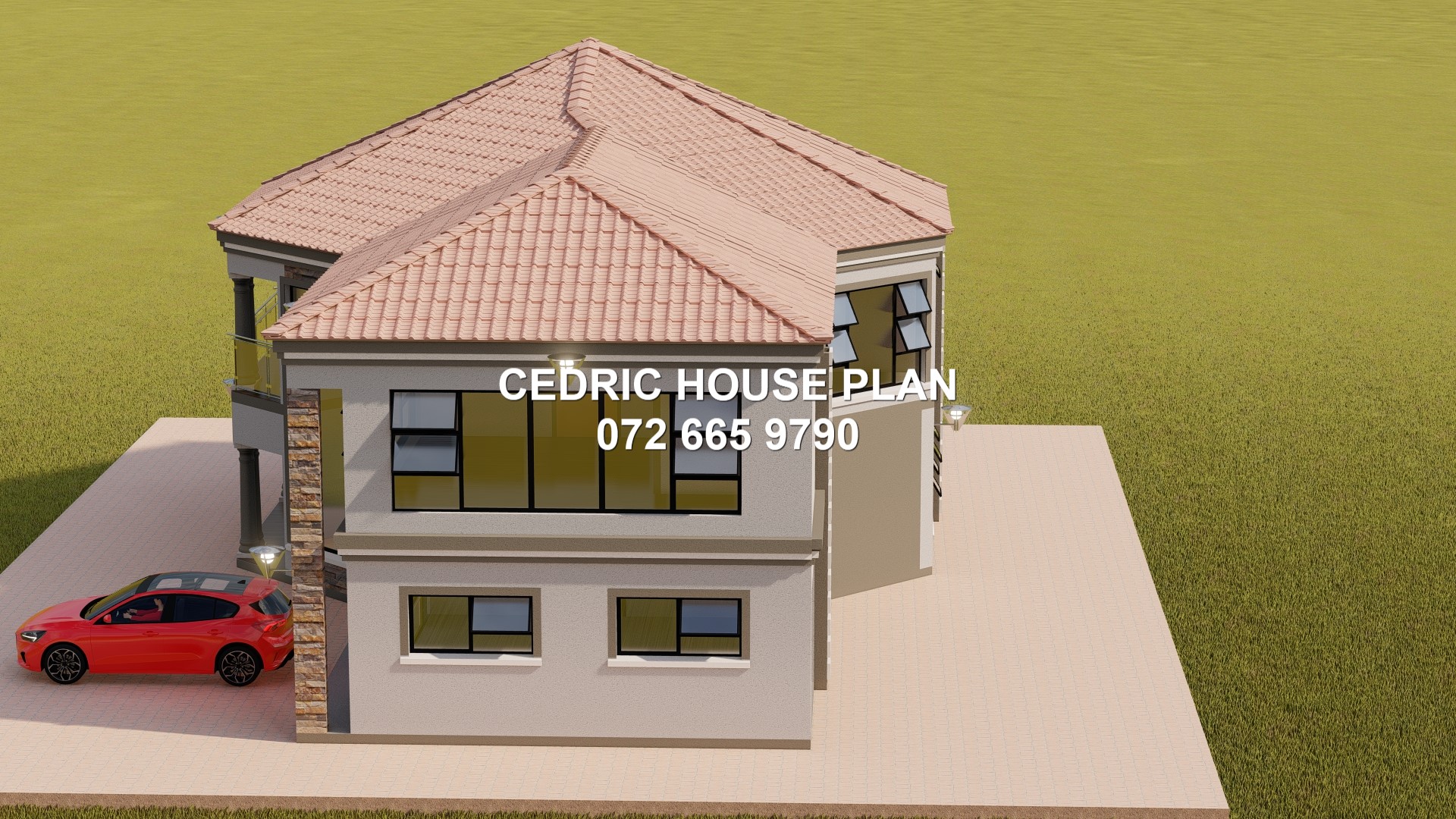

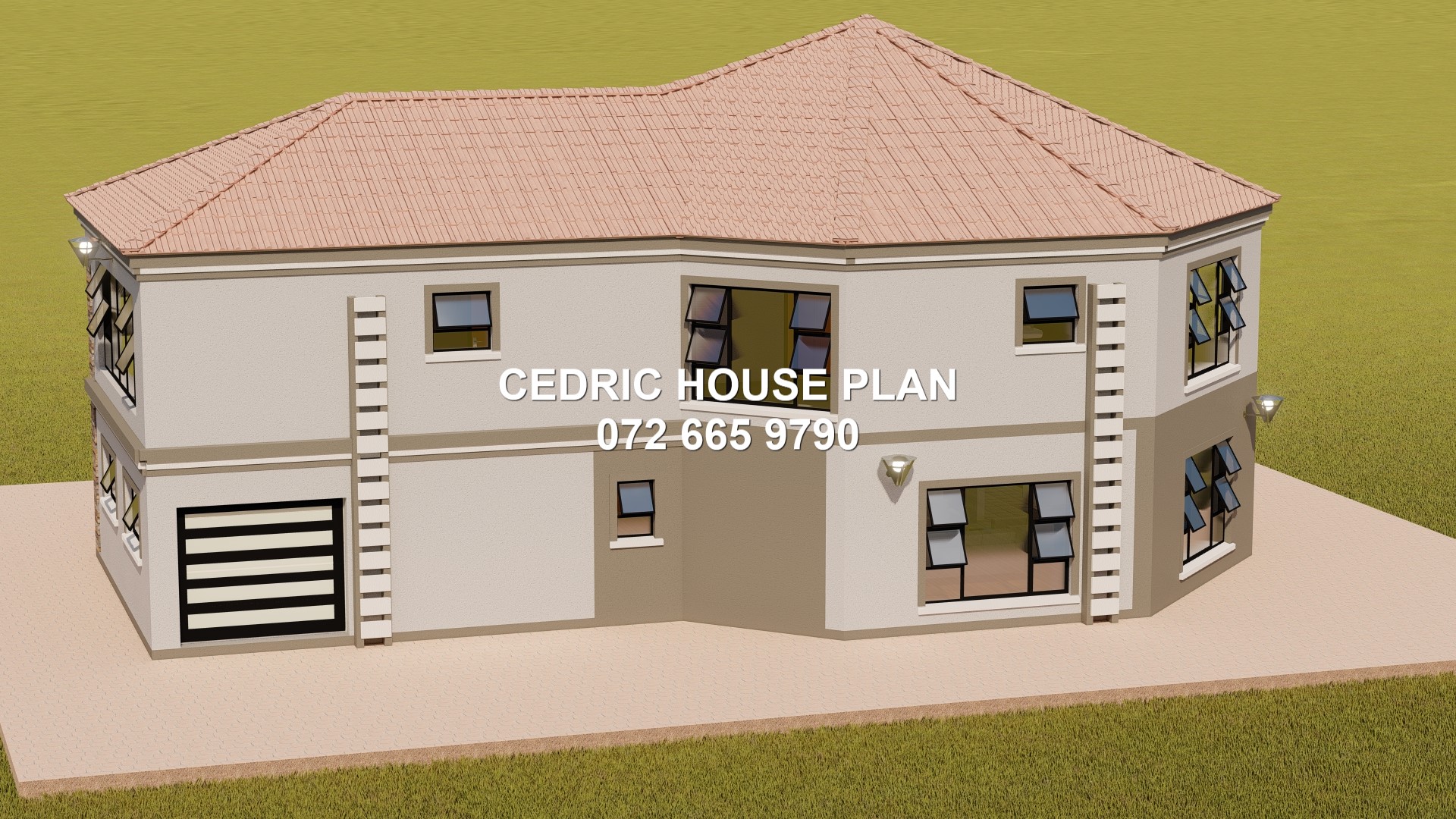

4 BEDROOMS DOUBLE STOREY

GROUND FLOOR

KITCHEN

LOUNGE

DINING

GARAGE

BATH

TOP FLOOR

4 BED

1 BATH

1 ENSUITE

Design Description

GROUND FLOOR:

•Open plan

  • Floor Area: 84.467 m²
  • Description: central-left of the floor, opening to the patio at the front/bottom, with the kitchen at the left and bathroom and double garage to the right, adjacent to the stair hall; contains lounge/dining furniture and windows.

•Kitchen

  • Floor Area: 13.678 m²
  • Description: at the left/front of the floor, opening off the open plan and next to the patio; contains counters, sink, stove/cooker and window.

•Patio

  • Floor Area: 11.784 m²
  • Description: at the front/bottom of the floor, opening off the open plan and beside the kitchen; contains no internal fixtures shown.

•Bath

  • Floor Area: 7.749 m²
  • Description: at the upper-right of the open plan, between the open plan and double garage; contains bath, toilet, basin and corner shower.

•Double garage

  • Floor Area: 38.980 m²
  • Description: on the right side of the floor, opening off the area by the stairs and opposite the open plan/bathroom; contains double garage door.

FIRST FLOOR:

•Ent hall

  • Floor Area: 24.637 m²
  • Description: central space, with bedrooms and bathroom opening off it, balcony at the front/bottom and stairs at the right/front; contains staircase.

•Bedroom

  • Floor Area: 20.527 m²
  • Description: upper-left of the floor, opening off the ent hall, next to the bath and above the lower-left bedroom; contains windows.

•Bath

  • Floor Area: 9.524 m²
  • Description: upper middle-left, opening off the ent hall, between the two upper bedrooms; contains bath, toilet, basin and shower.

•Bedroom

  • Floor Area: 20.951 m²
  • Description: upper middle, opening off the ent hall, between the bath and en suite/main bedroom; contains window.

•En suit

  • Floor Area: 8.023 m²
  • Description: upper-right, opening off the main bedroom; contains bath, toilet, basin and shower.

•Main bedroom

  • Floor Area: 30.294 m²
  • Description: right side of the floor, opening off the ent hall, next to the en suite; contains windows.

•Bedroom

  • Floor Area: 17.818 m²
  • Description: lower-left of the floor, opening off the ent hall and above the balcony; contains windows.

•Balcony

  • Floor Area: 11.783 m²
  • Description: front/bottom of the floor, opening off the ent hall; contains no internal fixtures shown.
4
Bedrooms
3
Bathrooms
2
Levels
173 m²
Floor Area
2
Garages
12.3 m
Length
19 m
Width
Price
R 4 499,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
