3 BEDROOMS

3 BED

2 BATH

KITCHEN

LOUNGE

DINING

GARAGE

Design Description

•The house is divided into a left garage and bedroom section, a central living area, and a right-side main bedroom section.

•A large double garage is positioned at the lower-left side of the plan. It has internal access into the passage that connects the rest of the home.

•Above the garage is the first bedroom, located in the upper-left corner. A shared bathroom is positioned directly below this bedroom, close to the central passage.

•The dining room is located in the upper-middle-left area, between the left bedroom section and the kitchen. It is centrally placed for easy access from the living spaces.

•The kitchen is at the upper-middle-right side of the house. It includes an outdoor rear patio directly behind it, providing a practical service or outdoor cooking area.

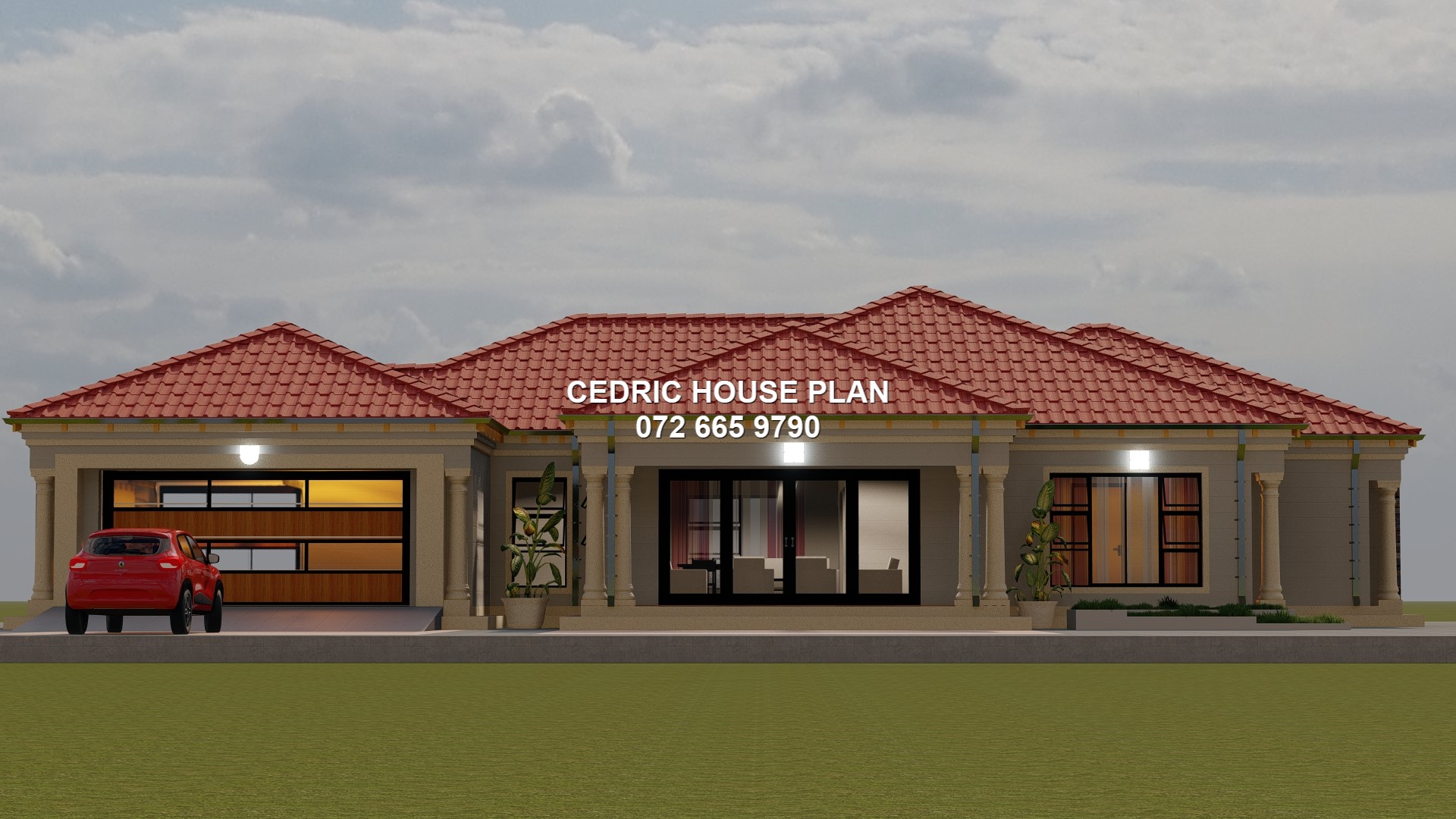

•The lounge is centrally located in the lower-middle section. It opens onto a large front patio, creating the main entrance and entertainment area.

•The main bedroom occupies the right side of the home, providing a private sleeping wing. It is connected to its own en-suite bathroom located at the upper-right side.

•A passage connects the garage, left bedroom, shared bathroom, dining room, kitchen, lounge, main bedroom, and en-suite bathroom.

•Overall, the layout provides a practical flow: garage and secondary bedroom on the left, dining and kitchen at the top centre, lounge and front patio in the middle, and the private main bedroom suite on the right.

3
Bedrooms
2
Bathrooms
1
Levels
264 m²
Floor Area
2
Garages
21.8 m
Length
16.3 m
Width
Price
R 3 199,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
