3 BEDROOMS

3 BED

3 BATH

STUDY

KITCHEN

LOUNGE

DINING

GARAGE

Design Description

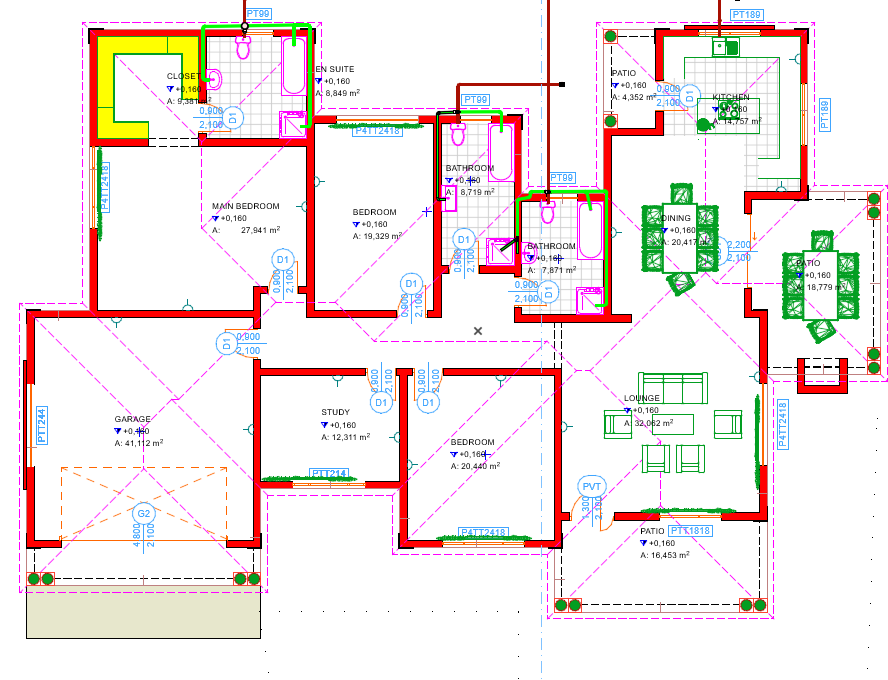

GROUND FLOOR:

•Garage

  • Floor Area: 41.112 m²
  • Description: front left of the house; contains garage door/opening.

•Main bedroom

  • Floor Area: 27.941 m²
  • Description: back left, above the garage and opening from the central hall; contains closet and en suite access, windows.

•Closet

  • Floor Area: 9.381 m²
  • Description: within/adjacent to the main bedroom at the back left; contains wardrobe cupboards.

•En suite

  • Floor Area: 4.849 m²
  • Description: at the back left beside the closet and off the main bedroom; contains bath, toilet, basin.

•Bedroom

  • Floor Area: 19.329 m²
  • Description: upper middle-left, right of the main bedroom and opening off the central hall; contains windows.

•Bathroom

  • Floor Area: 8.719 m²
  • Description: upper middle, right of that bedroom; contains bath, shower, toilet, basin.

•Bathroom

  • Floor Area: 7.871 m²
  • Description: upper middle-right, beside the other bathroom and off the hall; contains bath, shower, toilet, basin.

•Study

  • Floor Area: 12.311 m²
  • Description: lower middle-left, right of the garage and opening off the central hall; contains window.

•Bedroom

  • Floor Area: 20.440 m²
  • Description: lower middle, right of the study and opening off the central hall; contains windows.

•Lounge

  • Floor Area: 32.062 m²
  • Description: lower right, opening off the central hall and below the dining room; contains sofa seating, chairs, windows, door to patio.

•Patio

  • Floor Area: 16.453 m²
  • Description: front right, below the lounge; contains no internal fixtures shown.

•Dining

  • Floor Area: 14.441 m²
  • Description: upper right of the lounge, between the patio/courtyard and braai/patio area; contains dining table and chairs.

•Patio

  • Floor Area: 4.352 m²
  • Description: back right corner, above the dining room; contains no internal fixtures shown.

•Kitchen

  • Floor Area: 14.457 m²
  • Description: back right, above the dining room and next to the small patio; contains counters, sink, central island.

•Patio

  • Floor Area: 18.779 m²
  • Description: far right, opening off the dining area; contains outdoor table and chairs.
4
Bedrooms
2
Bathrooms
1
Levels
317 m²
Floor Area
2
Garages
16.1 m
Length
24.8 m
Width
Price
R 4 100,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
