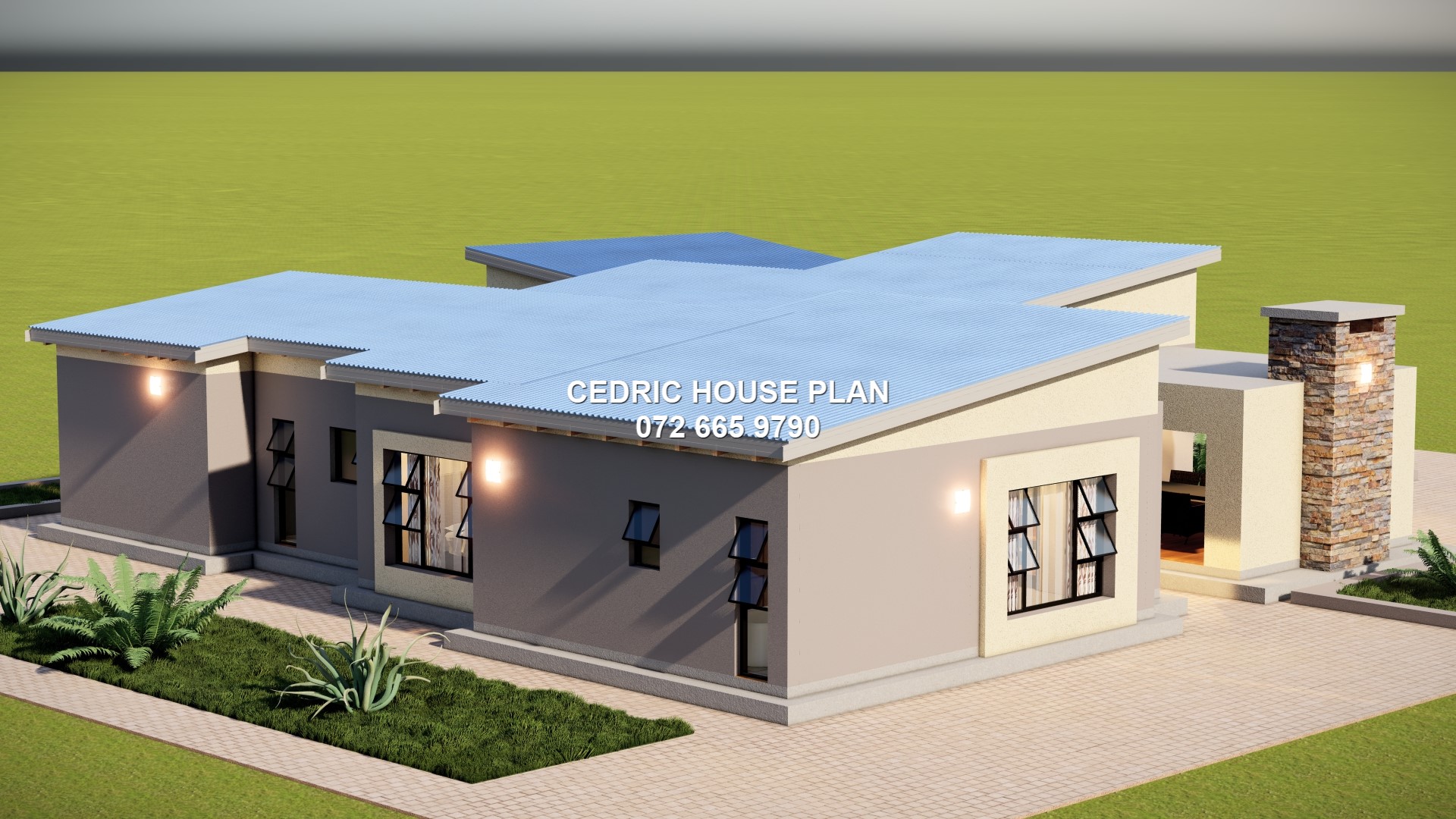

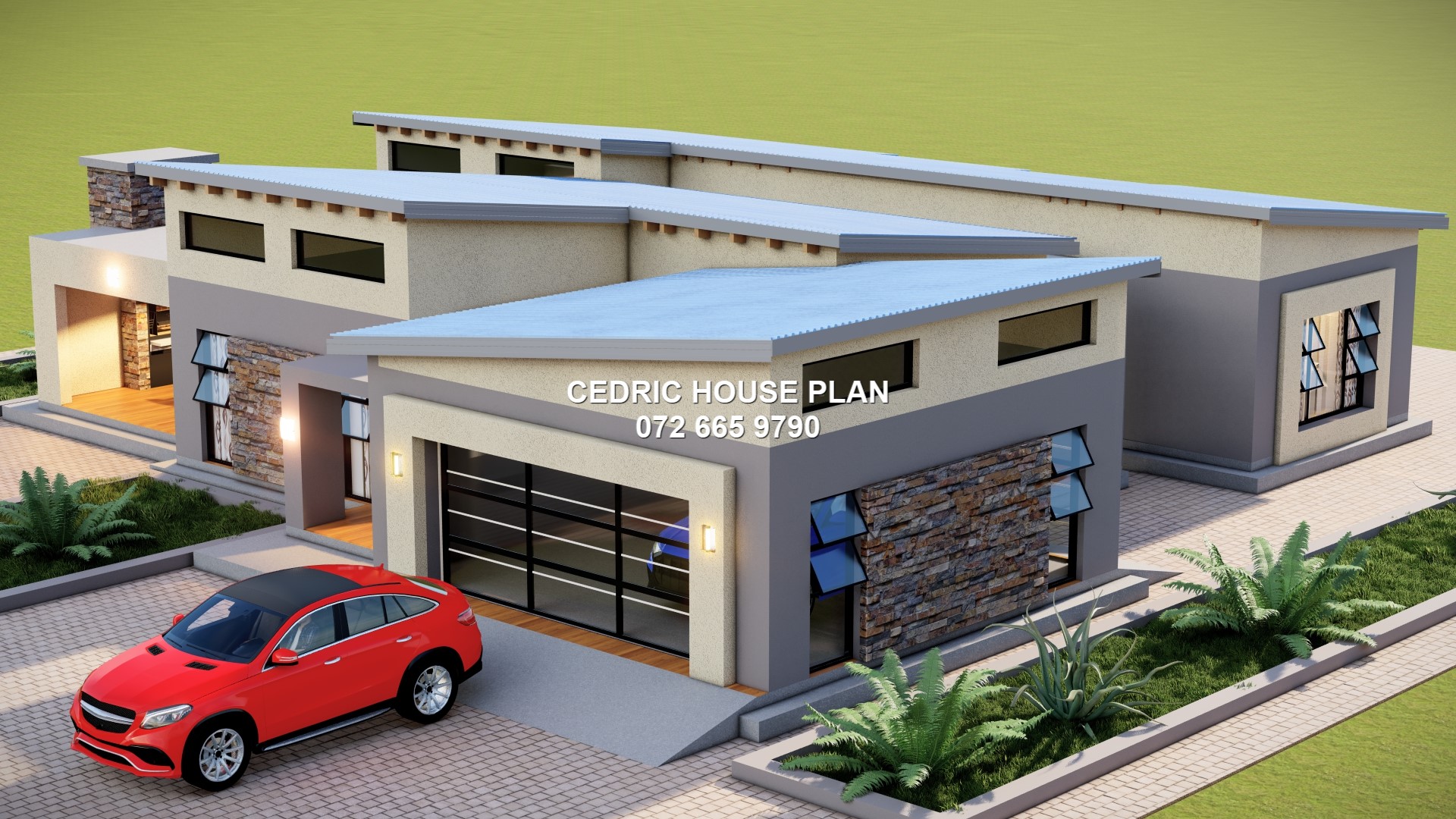

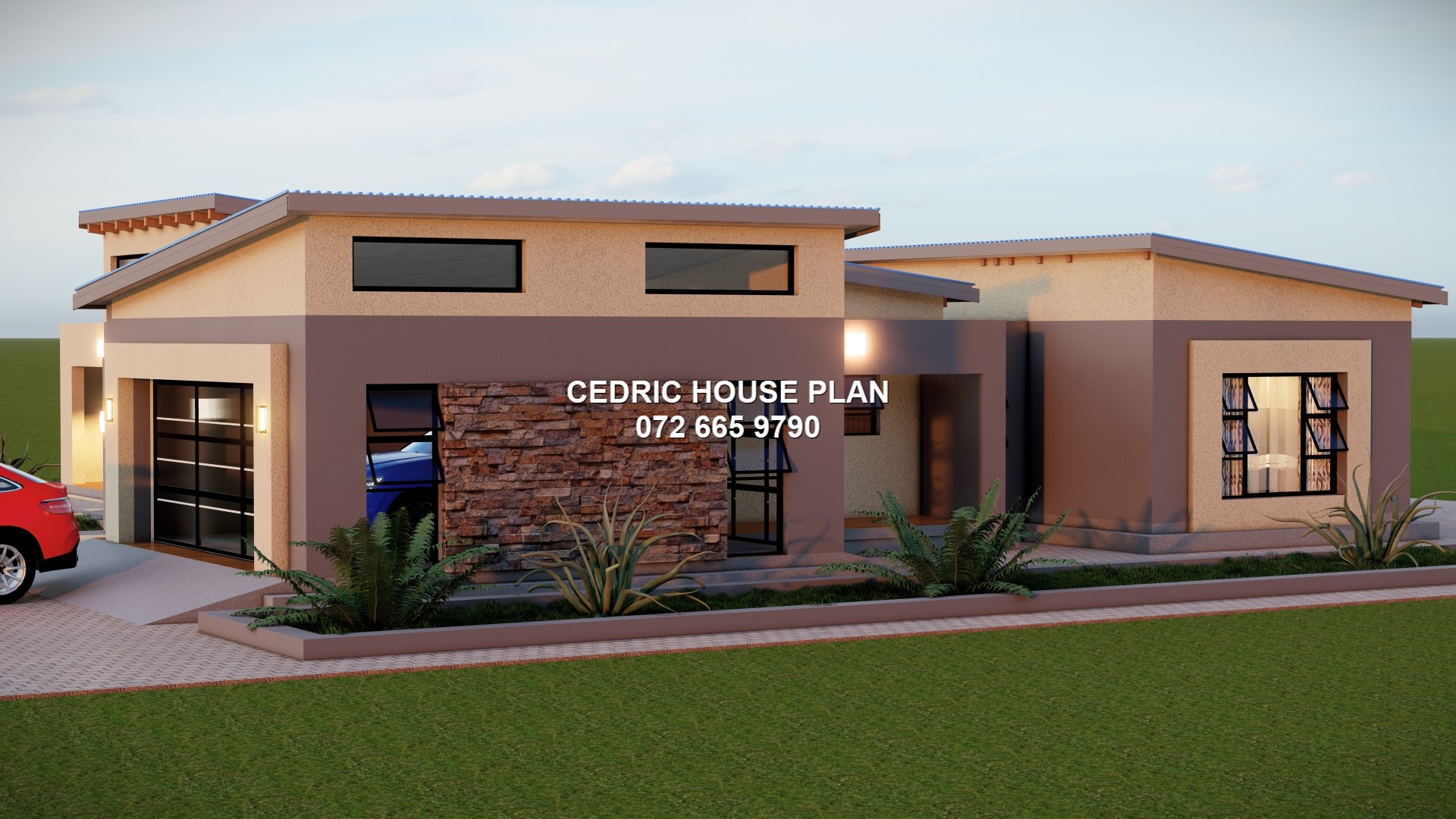

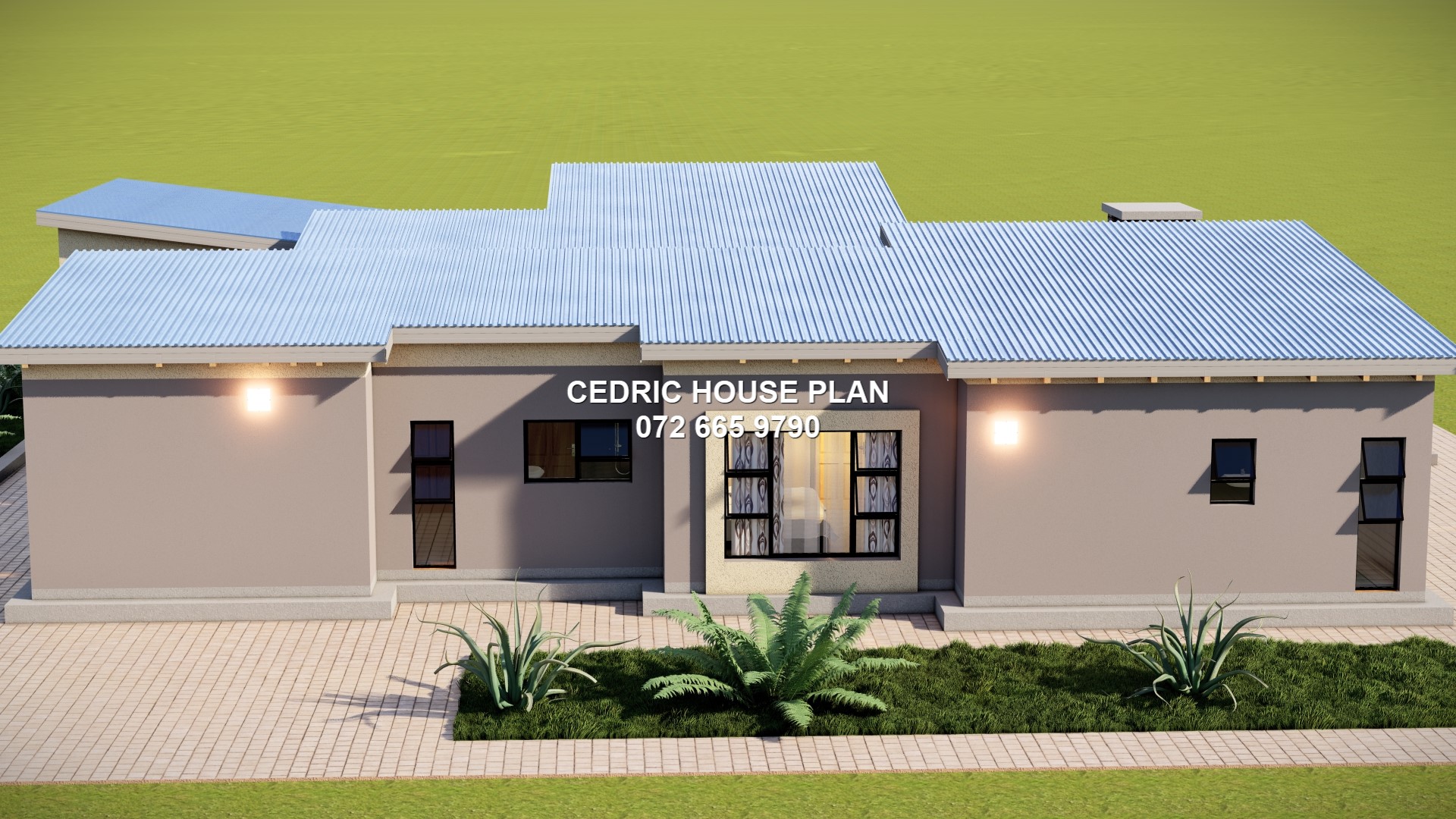

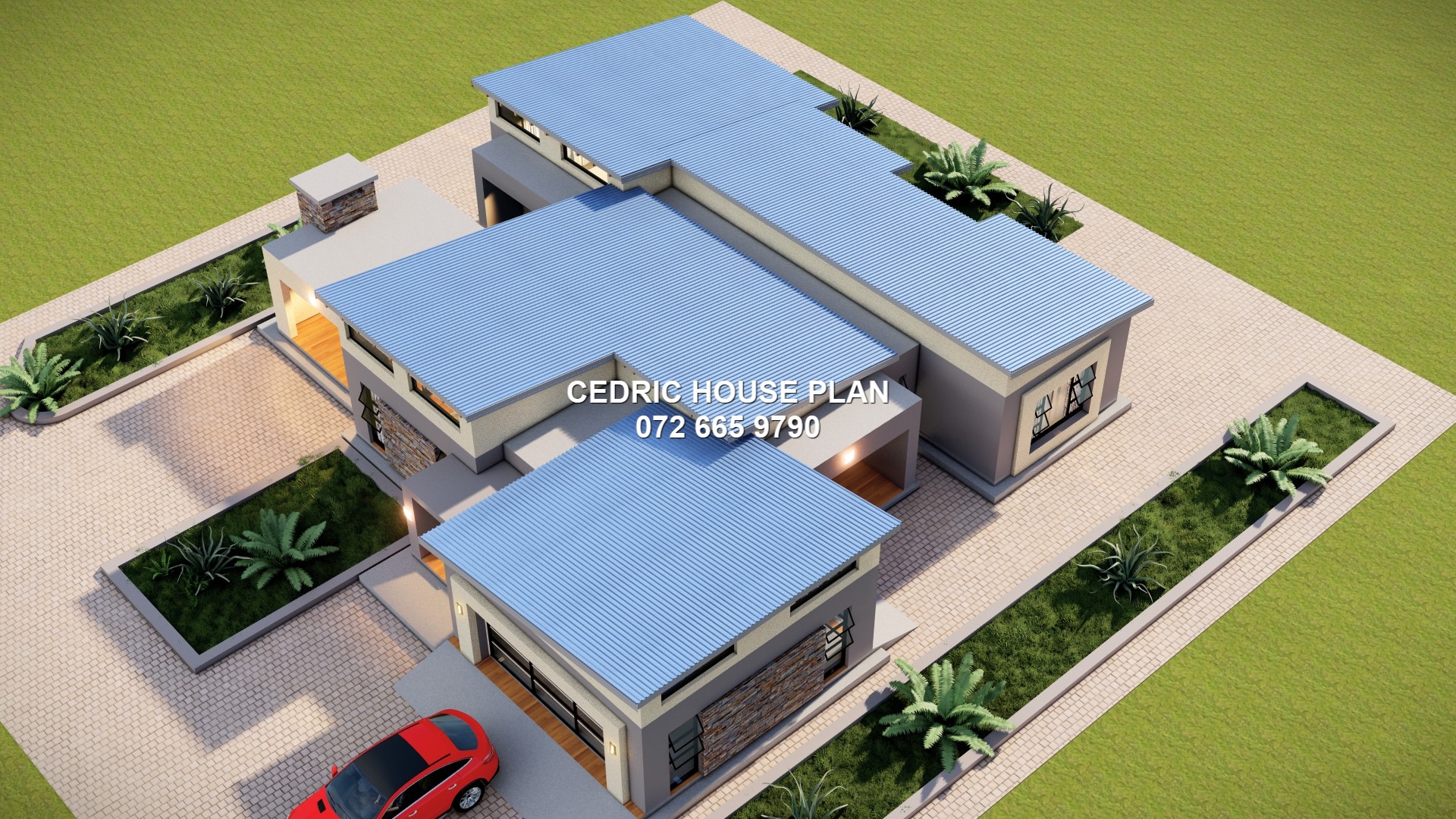

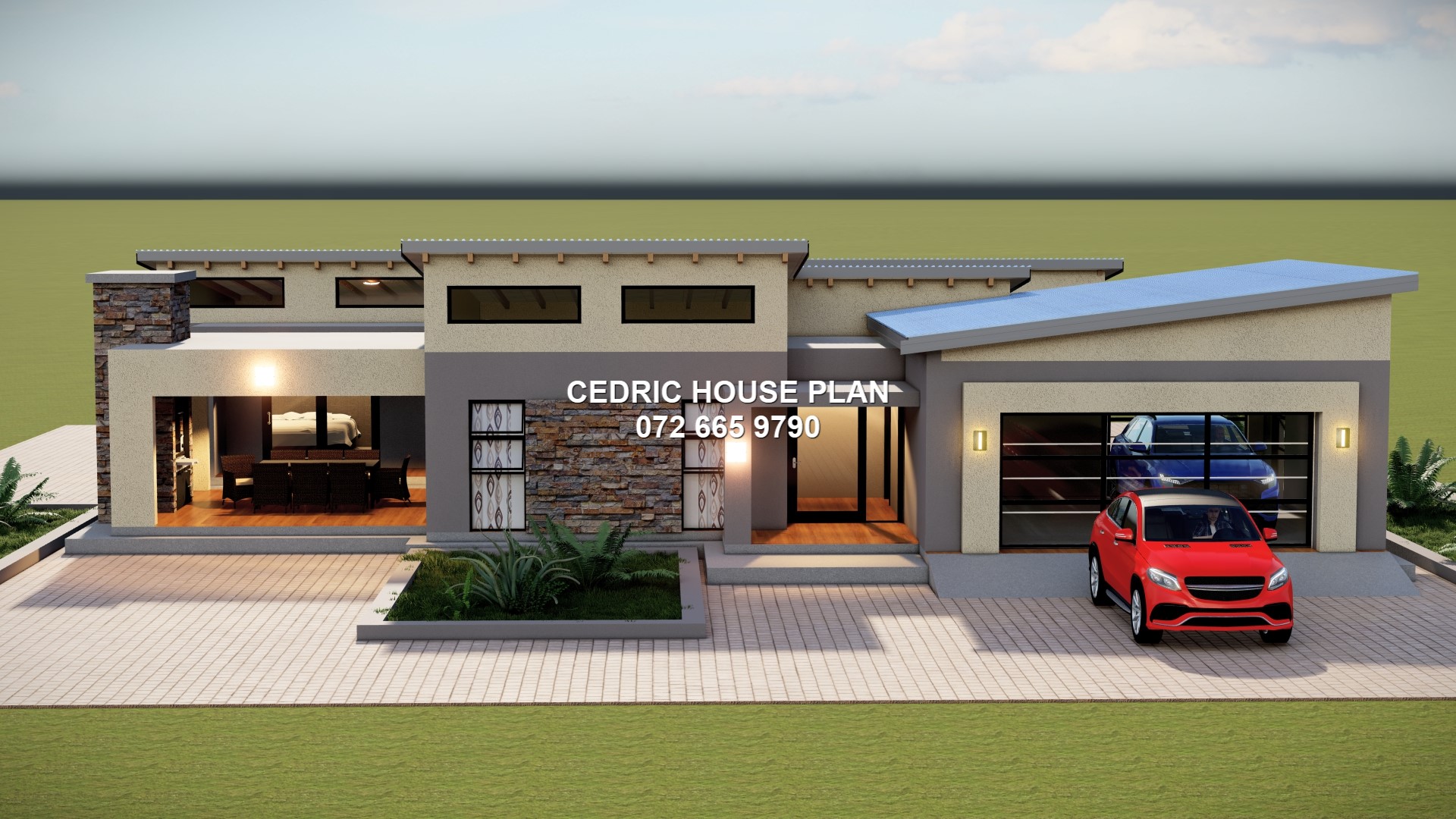

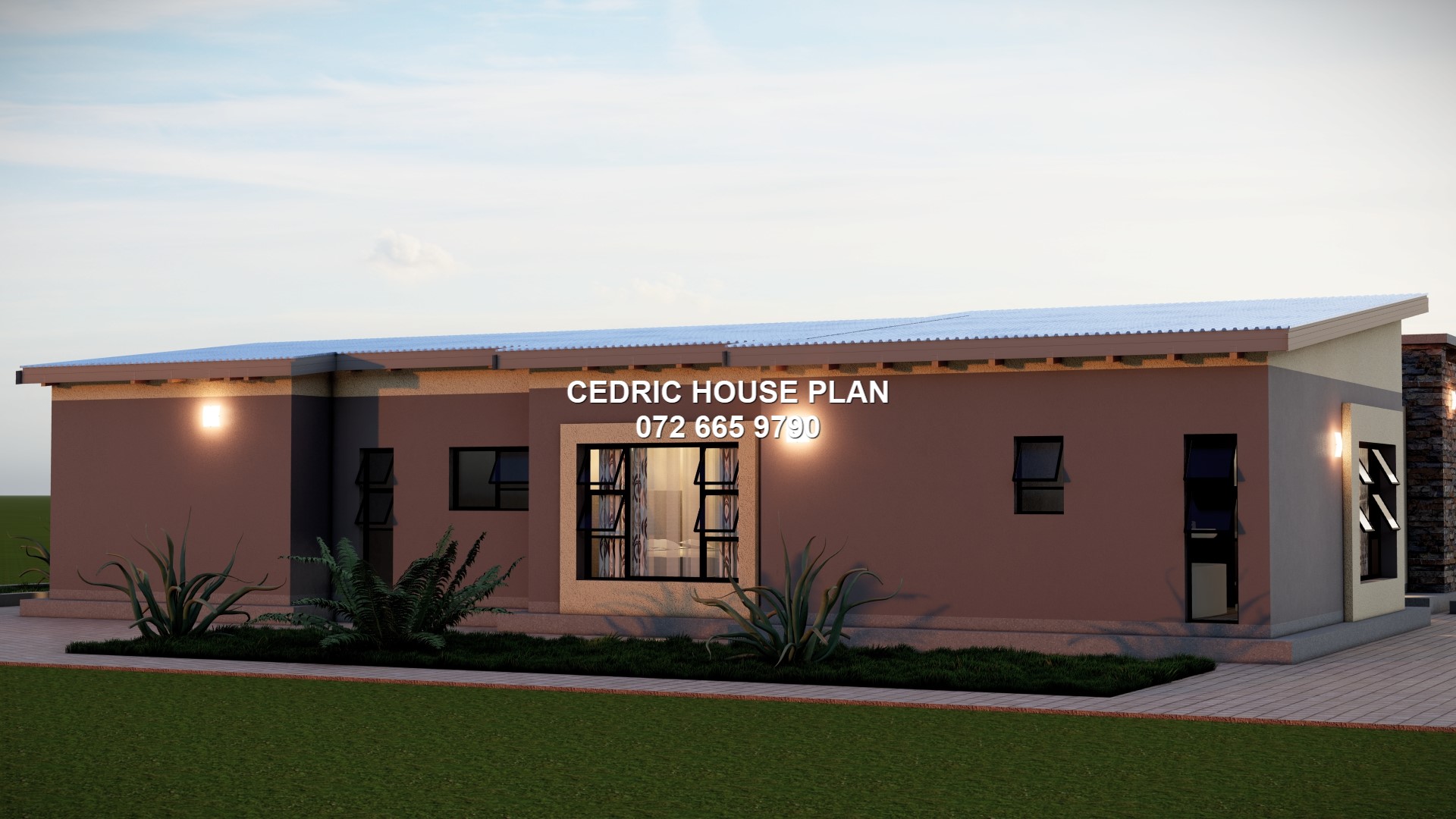

Photo Gallery

View Full Screen

3 BEDROOMS

3 BED

LAUNDRY

KITCHEN

LOUNGE

DINING

GARAGE

Design Description

GROUND FLOOR:

•Main bedroom

  • Floor Area: 23.282 m²
  • Description: at the left side of the house, off the passage, below the ensuite and left of the central bedroom; contains a bed.

•Ensuite

  • Floor Area: 4.828 m²
  • Description: at the top left, opening off the main bedroom, left of the closet; contains a shower, toilet and basin.

•Closet

  • Floor Area: 9.161 m²
  • Description: at the top left, opening off the main bedroom, right of the ensuite; contains wardrobe cupboards.

•Bedroom

  • Floor Area: 16.920 m²
  • Description: at the upper middle-left, off the passage, right of the main bedroom and left of the bathroom; contains a bed.

•Bathroom

  • Floor Area: 7.706 m²
  • Description: at the upper middle, off the passage, between the bedroom and laundry; contains a bath, shower, toilet and basin.

•Laundry

  • Floor Area: 5.793 m²
  • Description: at the upper middle-right, off the passage, right of the bathroom and left of the right bedroom; contains a sink/cabinet.

•Bedroom

  • Floor Area: 18.530 m²
  • Description: at the upper right, off the passage, right of the laundry; contains a bed.

•Passage

  • Floor Area: 14.532 m²
  • Description: runs horizontally through the middle upper part of the house linking the bedrooms, bathroom and laundry to the living areas; contains no other shown fixtures.

•Lounge & dining

  • Floor Area: 25.59 m²
  • Description: in the lower middle-left, below the passage and left of the kitchen; contains lounge seating, a dining table and windows.

•Kitchen

  • Floor Area: 18.067 m²
  • Description: in the lower middle-right, right of the lounge & dining and opening toward the porch; contains counters, sink and an island.

•Porch

  • Floor Area: 7.383 m²
  • Description: at the right of the kitchen and above the garage; contains no other shown fixtures.

•Garage

  • Floor Area: 42.170 m²
  • Description: at the lower right, right of the patio and below the porch; contains no other shown fixtures.

•Patio

  • Floor Area: 25.141 m²
  • Description: at the lower left, left of the lounge & dining; contains outdoor table and chairs.

•Patio

  • Floor Area: 8.783 m²
  • Description: at the left-middle below the main bedroom and beside the passage; contains no other shown fixtures.

•Patio

  • Floor Area: 6.008 m²
  • Description: at the lower middle-right, below the kitchen and left of the garage; contains no other shown fixtures.
3
Bedrooms
2
Bathrooms
1
Levels
288 m²
Floor Area
2
Garages
19.5 m
Length
20.5 m
Width
Price
R 3 499,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
