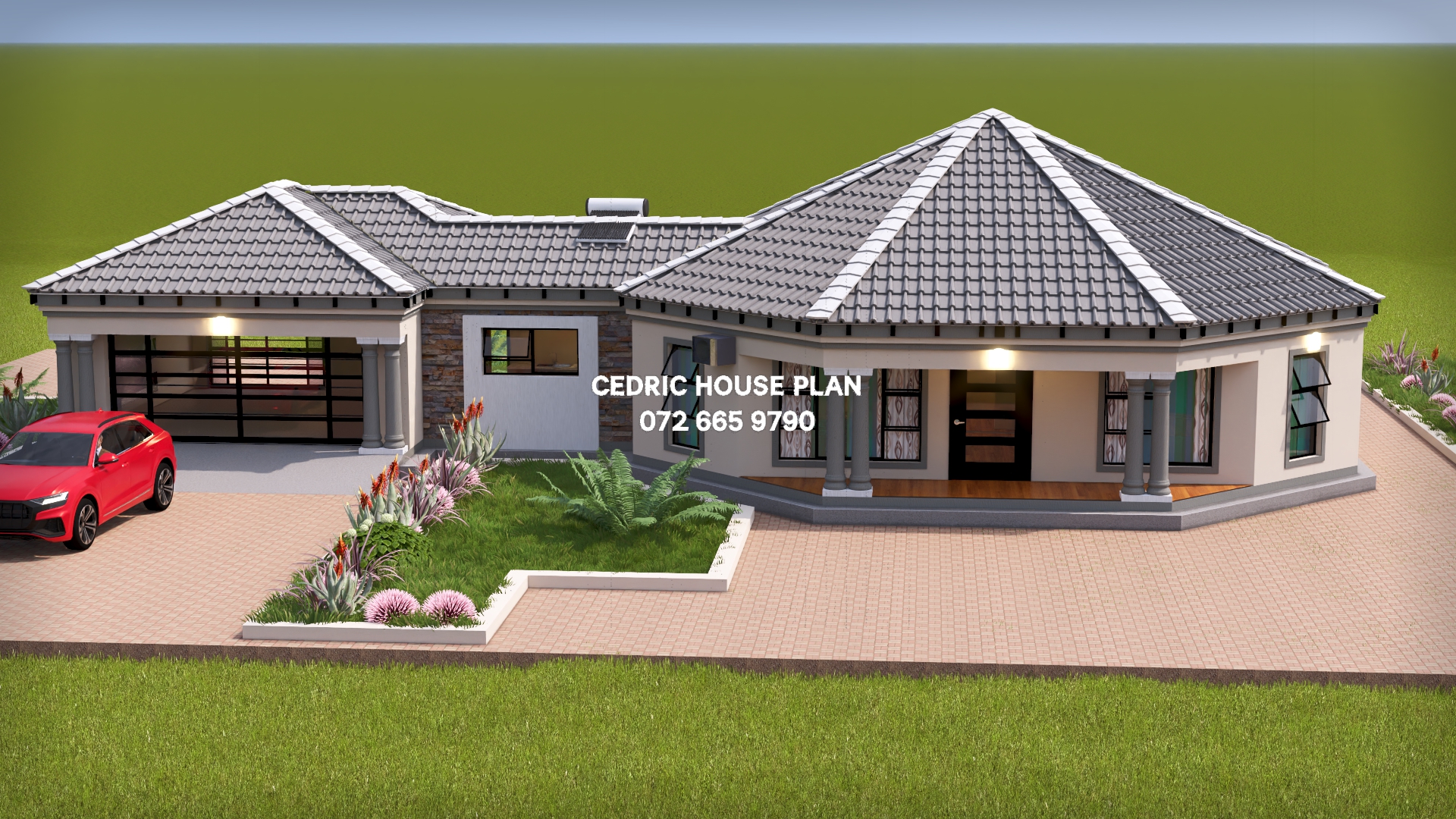

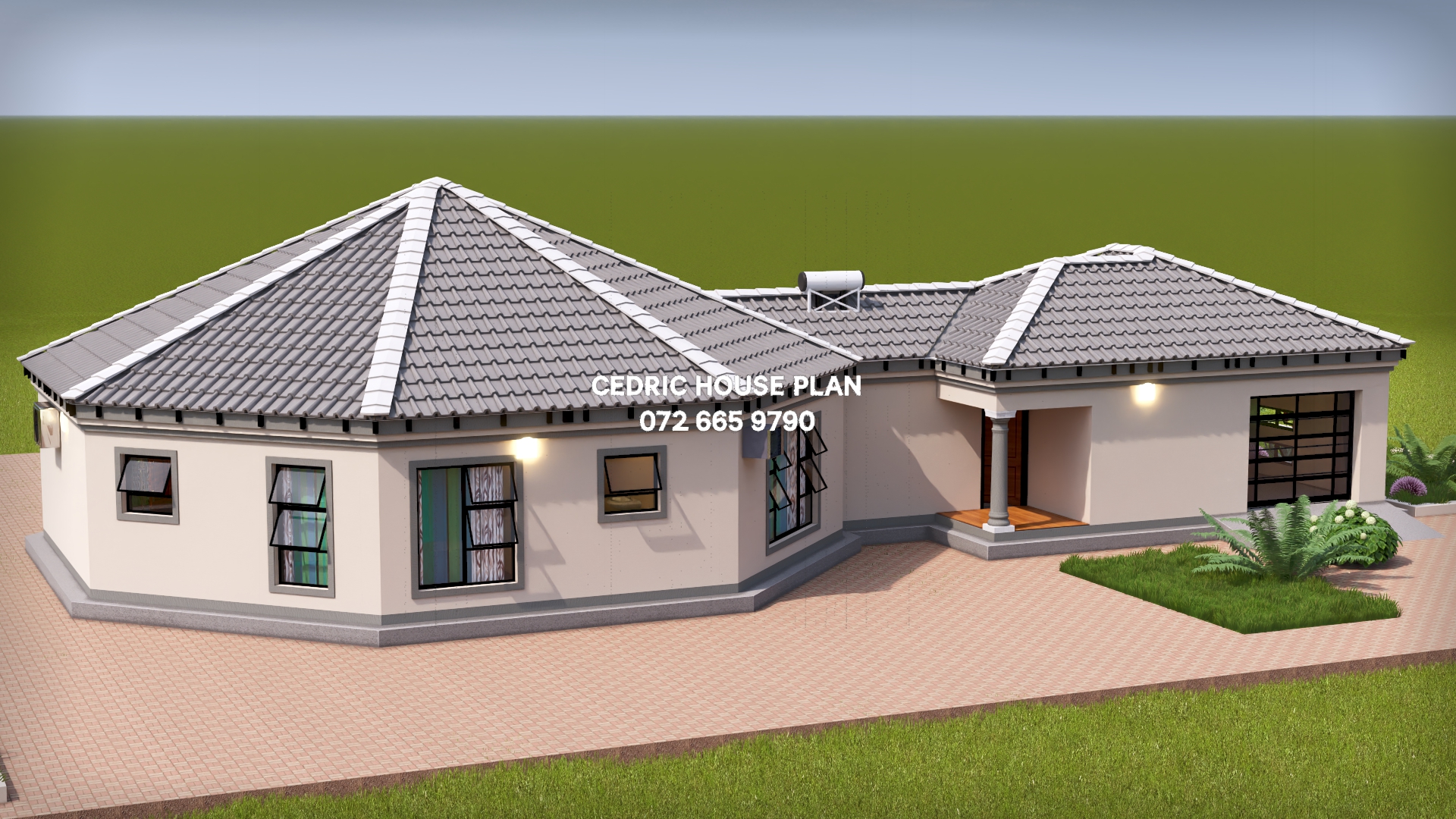

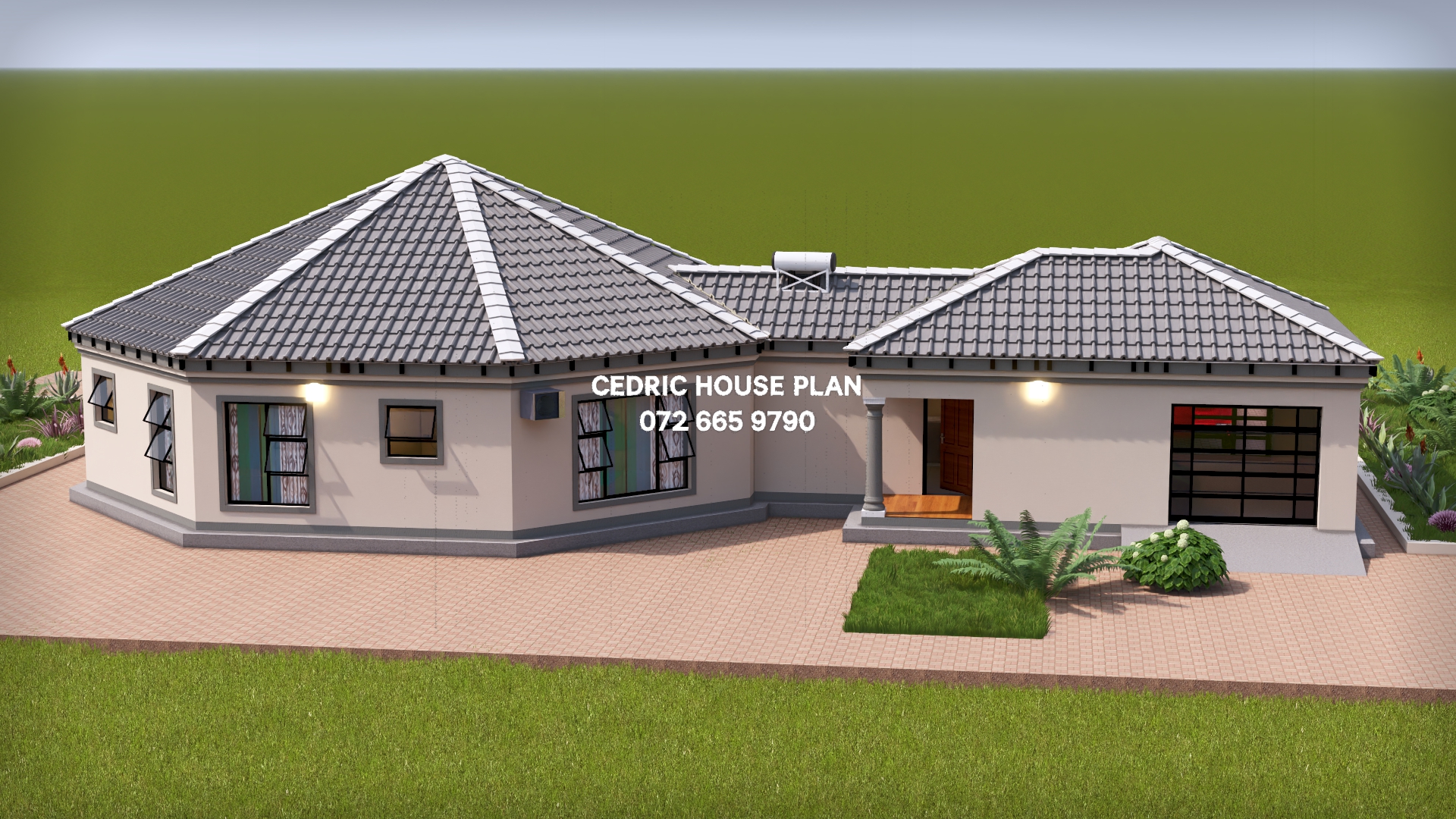

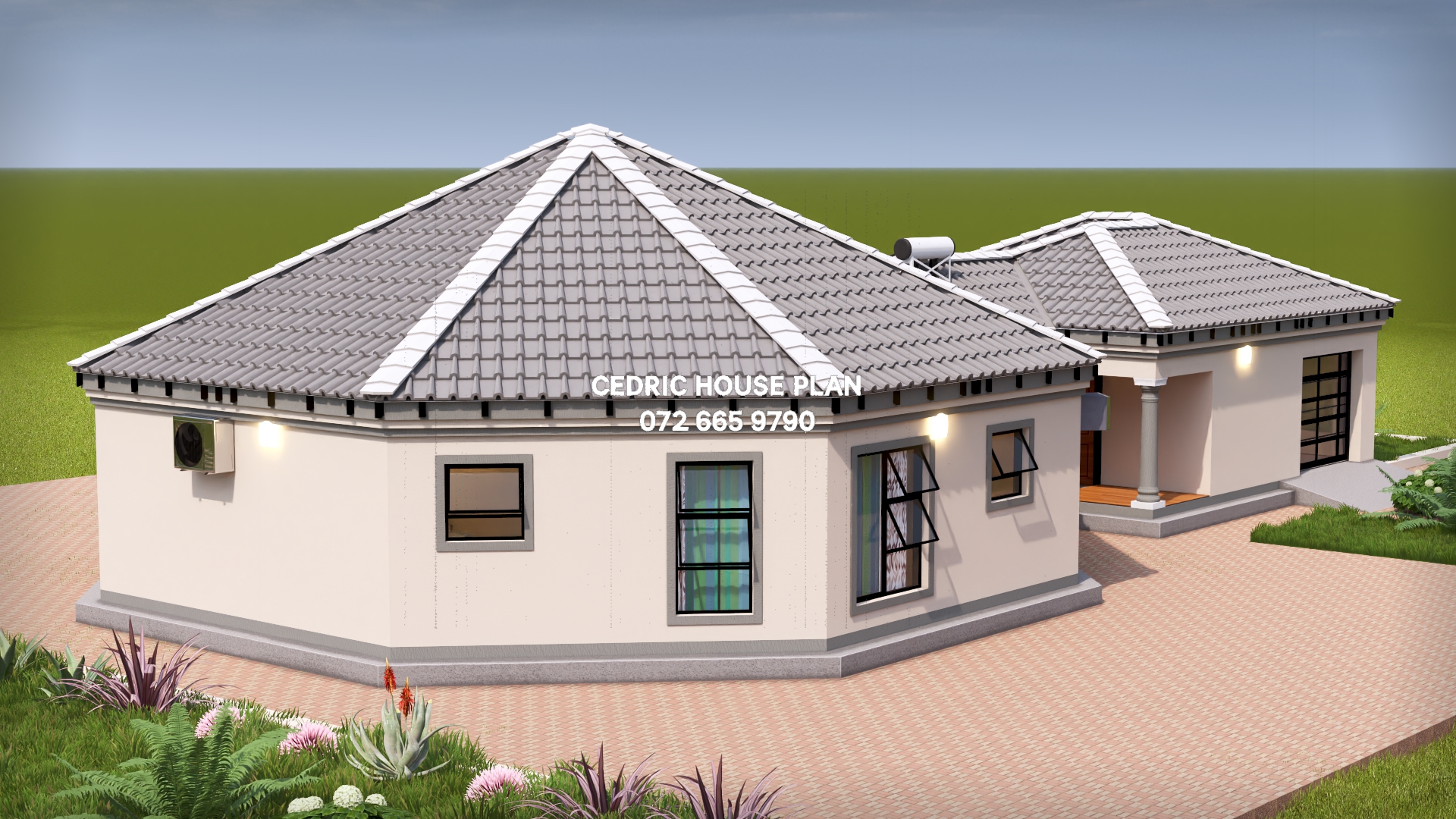

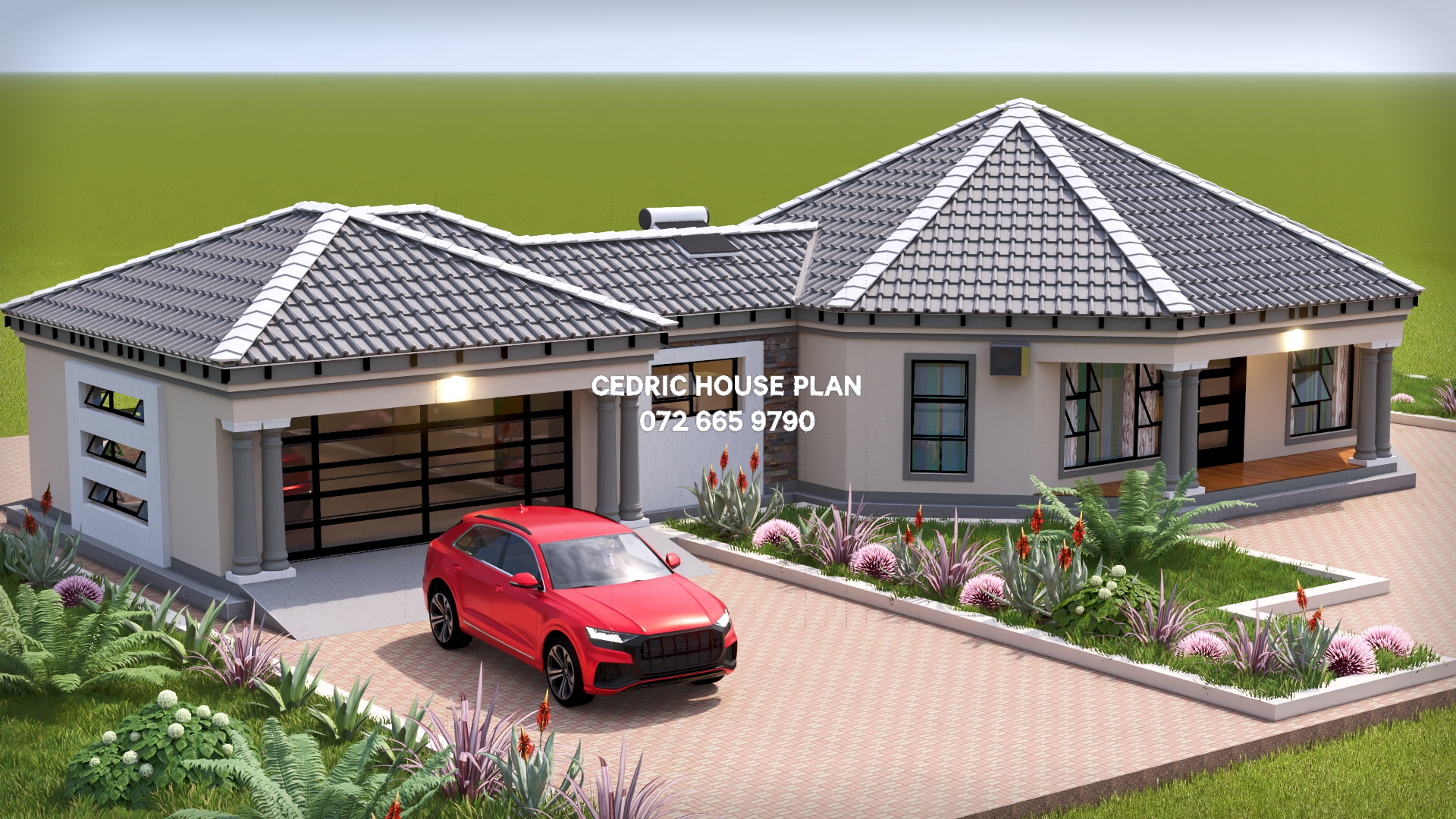

Photo Gallery

View Full Screen

3 BEDROOMS

GROUND FLOOR:

• Bedrooms: 3

• Sharing Bathroom: 1

• Ensuite: 1

• Kitchen: 1

• Lounge: 1

• Double Garage

Design Description

GROUND FLOOR:

•Garage

  • Floor Area: 38.967 m²
  • Description: at the left/front-left of the house, attached to the kitchen side and opening toward the front; contains vehicle bay markings and a garage door.

•Porch

  • Floor Area: 4.004 m²
  • Description: between the garage and kitchen at the upper middle-left, opening into the house near the kitchen; contains no internal fixtures shown.

•Kitchen

  • Floor Area: 14.313 m²
  • Description: between the garage and lounge, below the upper porch and left of the lounge; contains sink, counters and stove/hob.

•Bedroom

  • Floor Area: 15.981 m²
  • Description: upper middle-left, left of the passage and above the lounge; contains windows.

•Bathroom

  • Floor Area: 8.033 m²
  • Description: upper centre, off the passage between the two bedrooms; contains bath, shower, toilet and basin.

•Passage

  • Floor Area: 7.678 m²
  • Description: central upper circulation space linking the lounge to the bedrooms, bathroom, closet, en suite and main bedroom; contains no fixtures shown.

•Bedroom

  • Floor Area: 14.864 m²
  • Description: upper right, off the passage and left of the en suite area; contains windows.

•Closet

  • Floor Area: 4.259 m²
  • Description: right of the passage, between the upper-right bedroom and main bedroom, leading toward the en suite; contains no fittings shown.

•En Suite

  • Floor Area: 6.115 m²
  • Description: far upper right, off the closet beside the main bedroom; contains bath, shower, toilet and basin.

•Main Bedroom

  • Floor Area: 21.666 m²
  • Description: lower right, off the passage and below the closet/en suite; contains windows.

•Lounge

  • Floor Area: 29.294 m²
  • Description: central/lower middle, right of the kitchen and below the left bedroom, opening to the front porch; contains sofa set and chairs.

•Porch

  • Floor Area: 10.542 m²
  • Description: at the front/bottom of the lounge and main bedroom; contains no internal fixtures shown.
3
Bedrooms
2
Bathrooms
1
Levels
203 m²
Floor Area
2
Garages
13 m
Length
23.5 m
Width
Price
R 2 820,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
