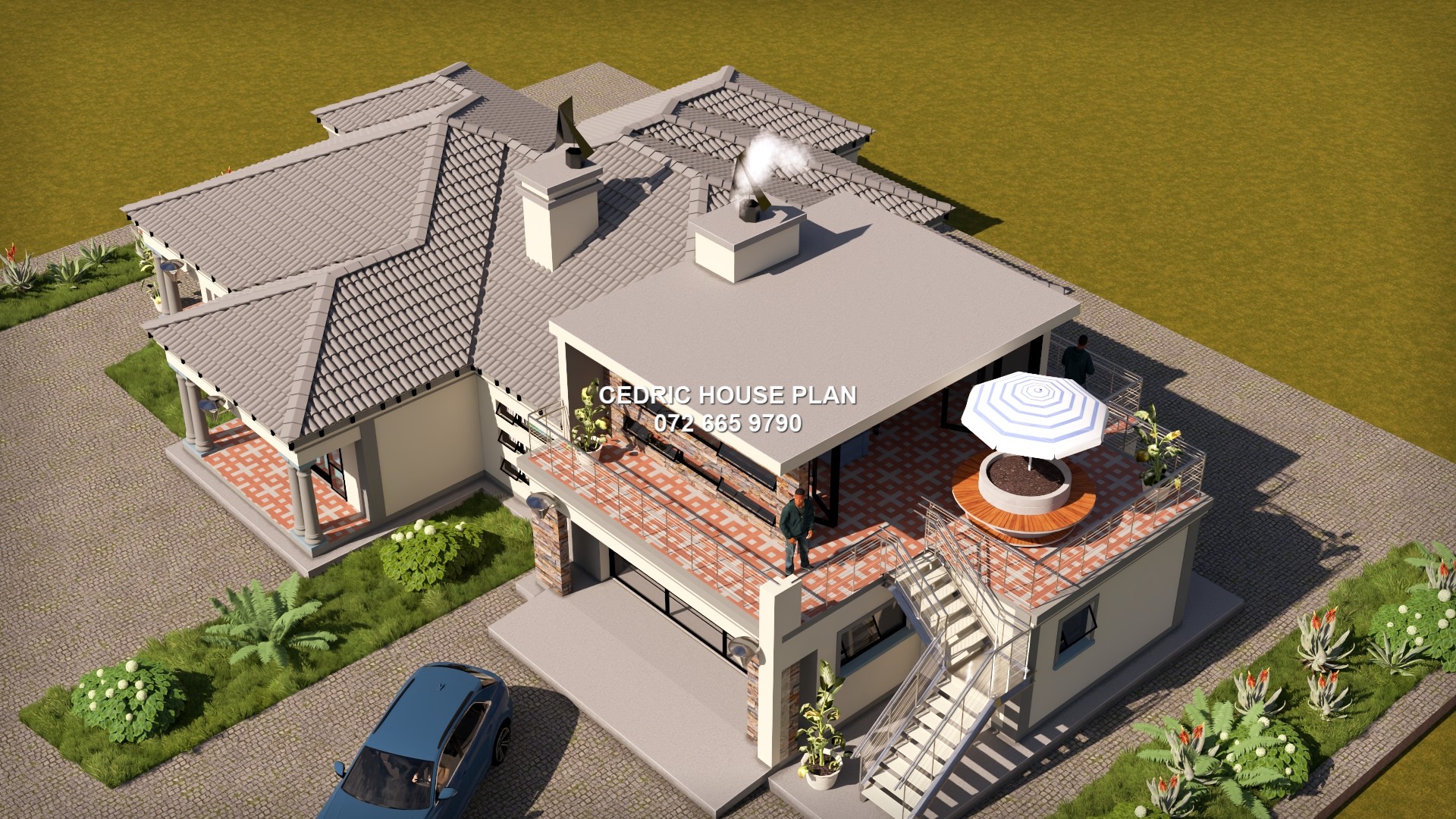

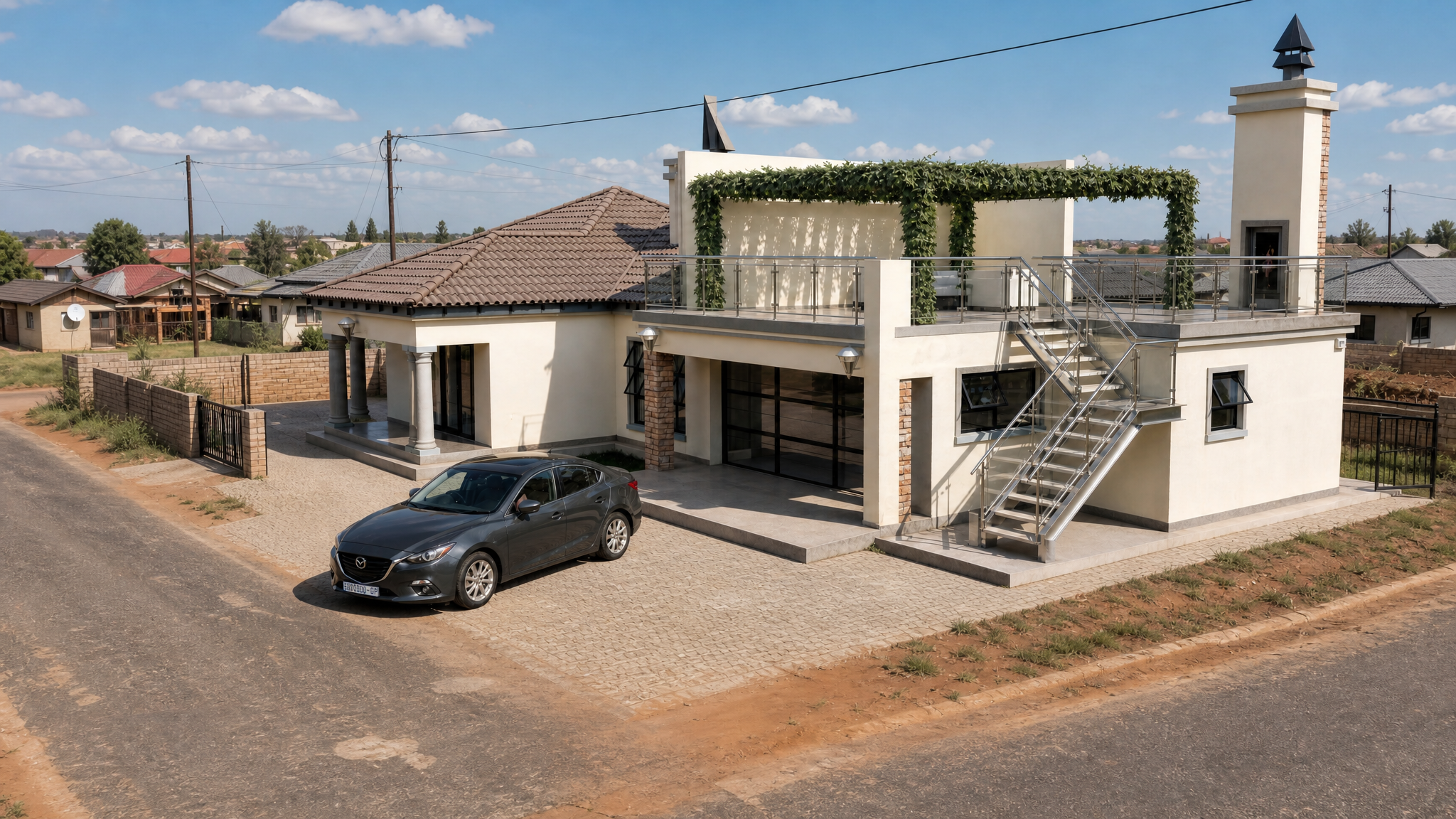

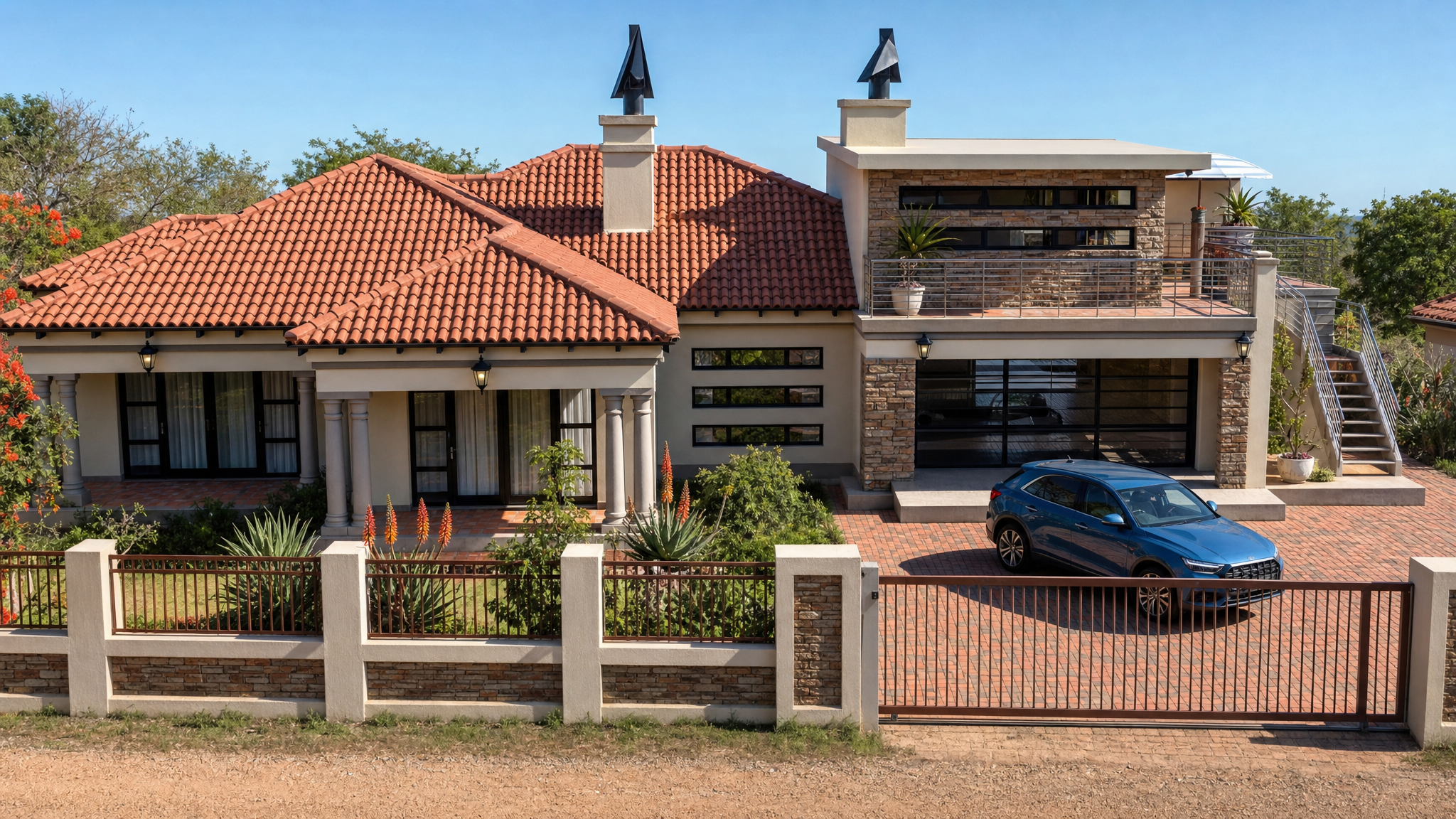

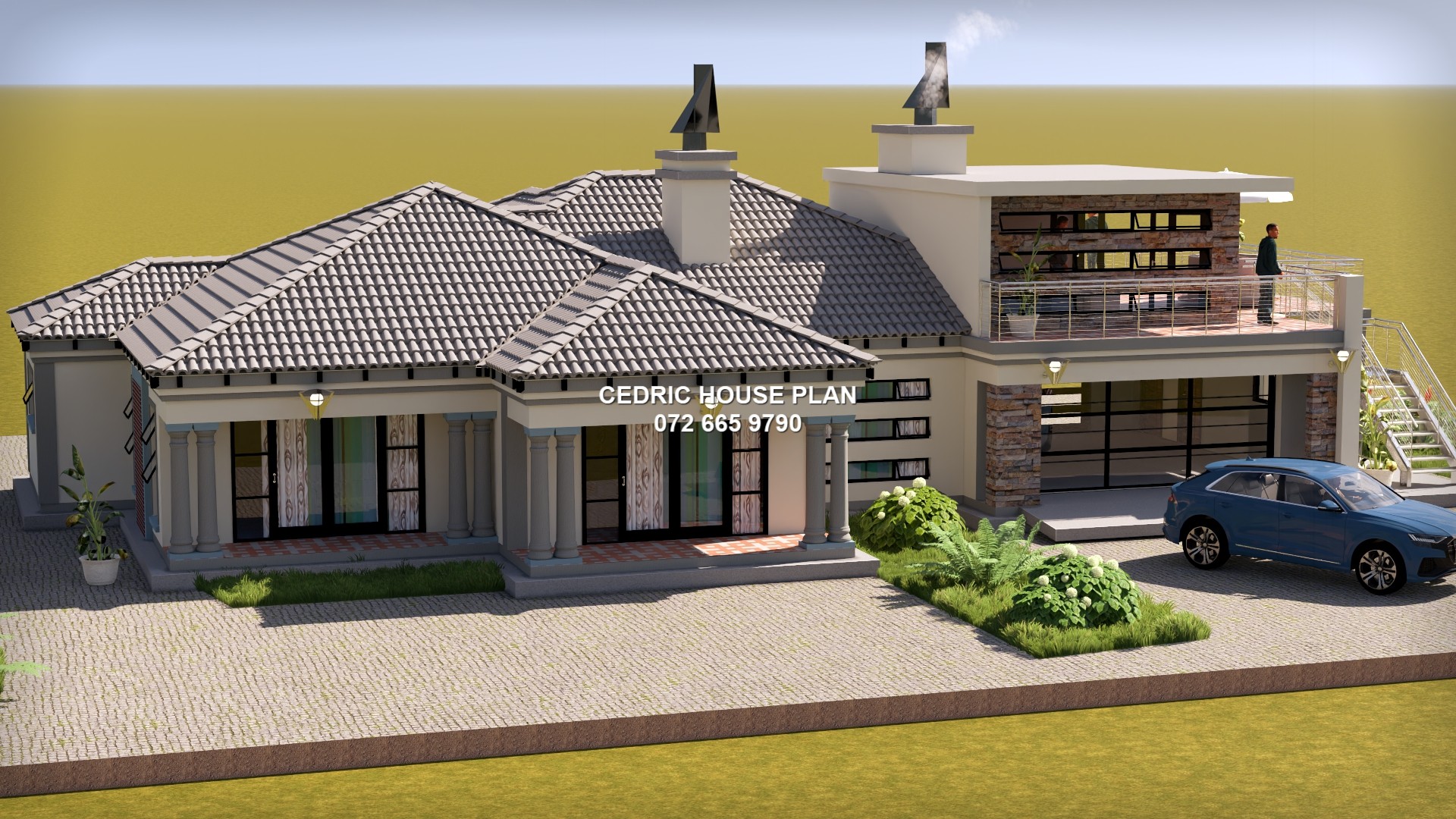

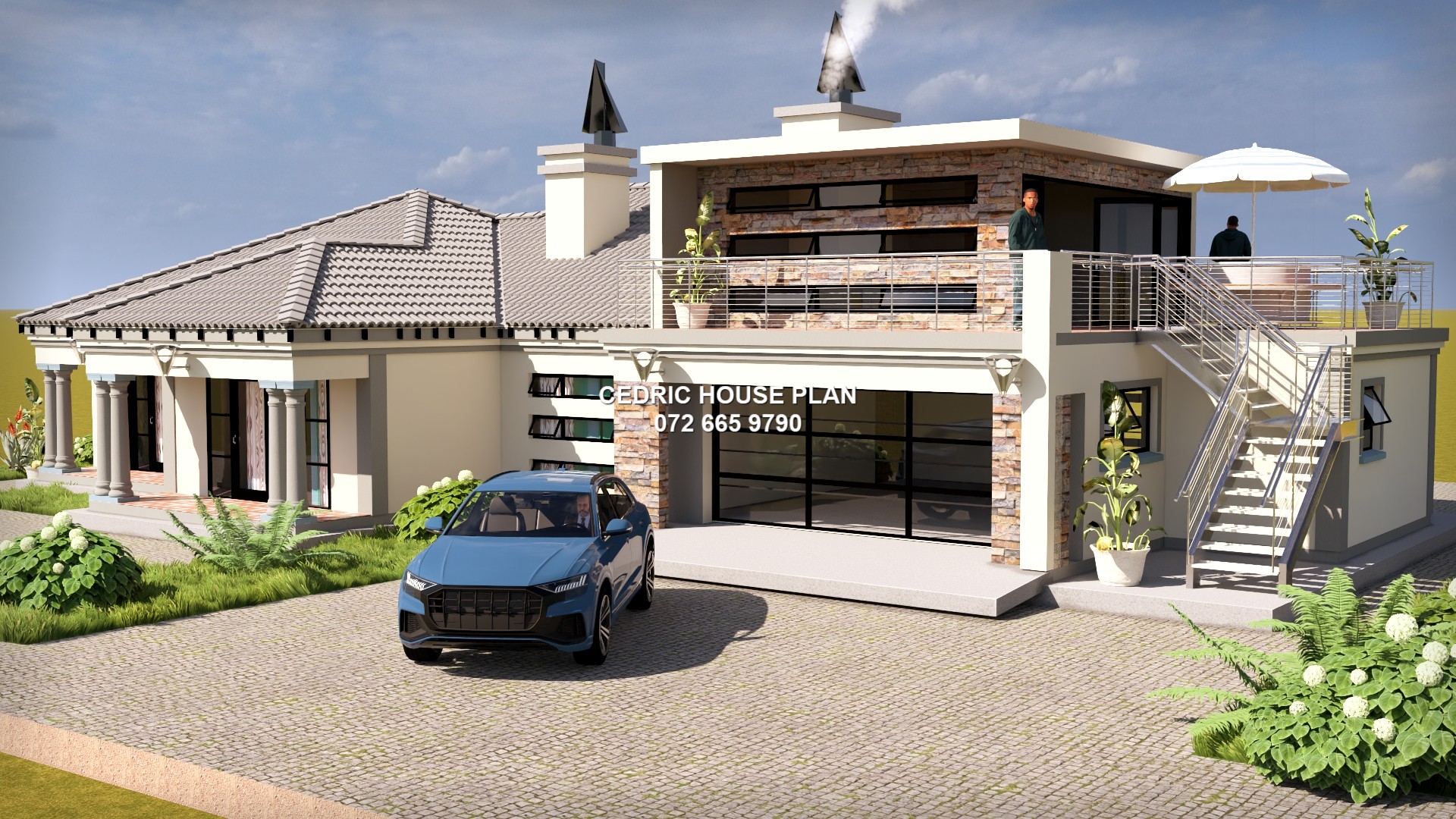

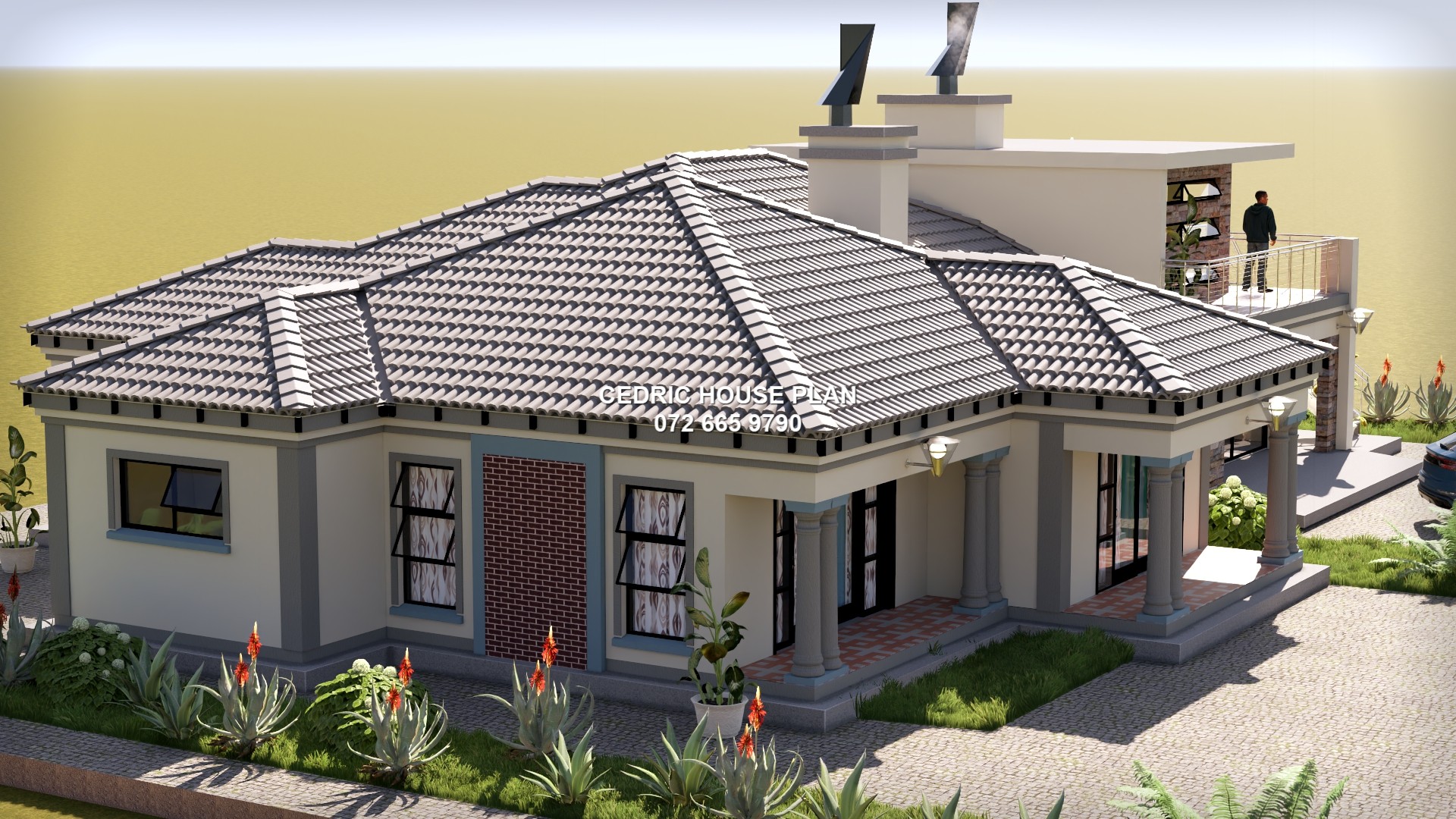

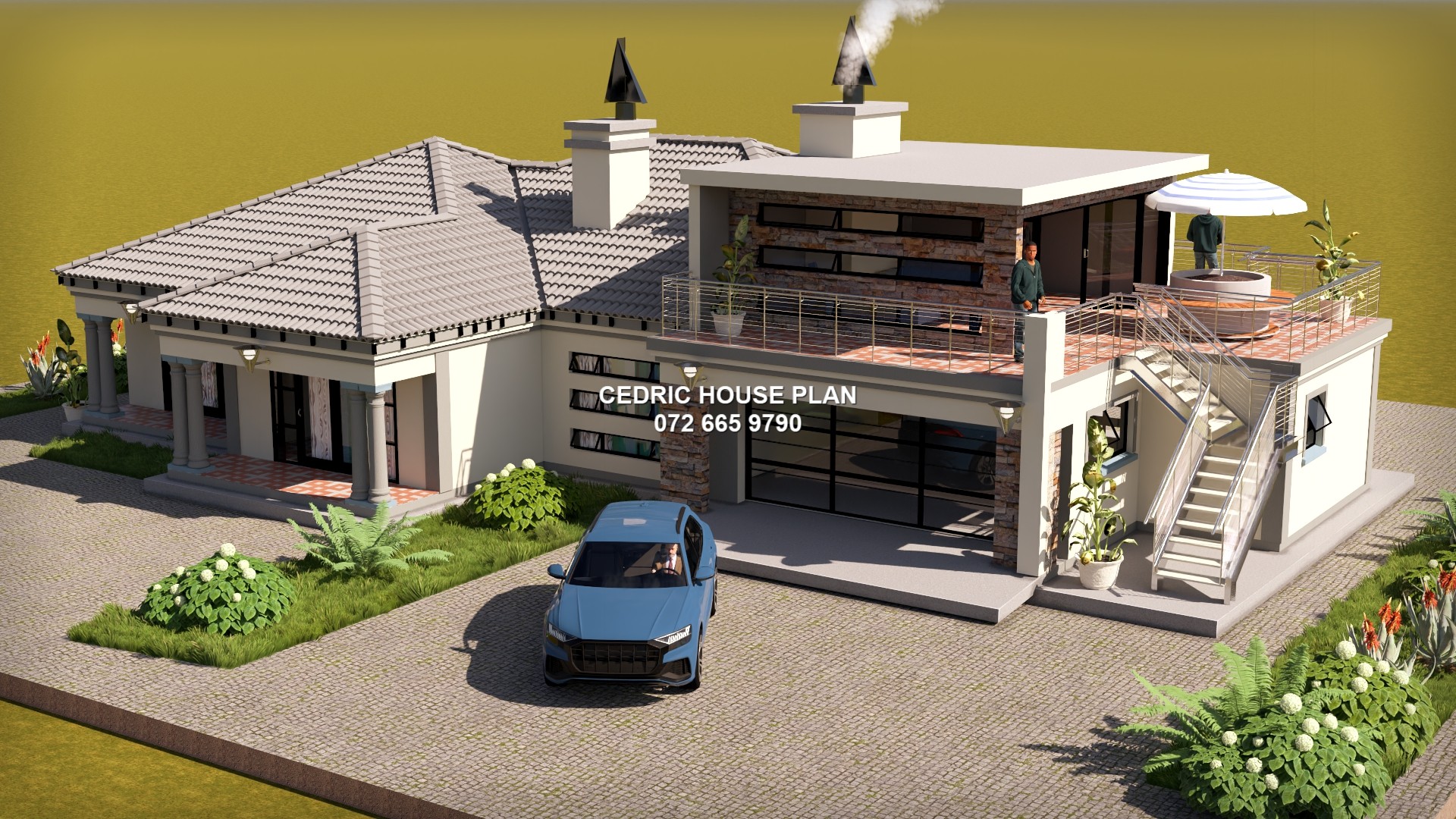

3 bedroom garage top

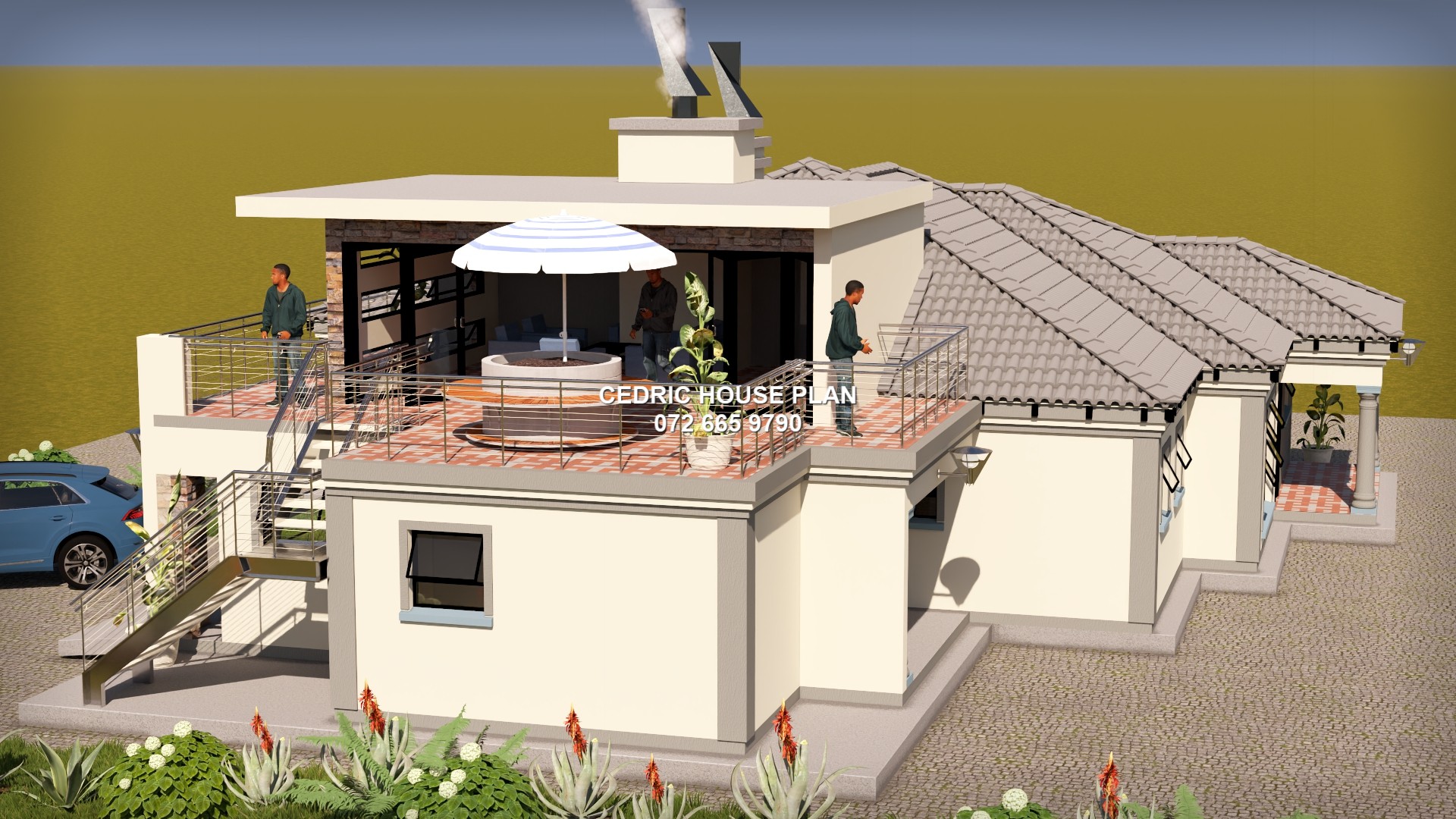

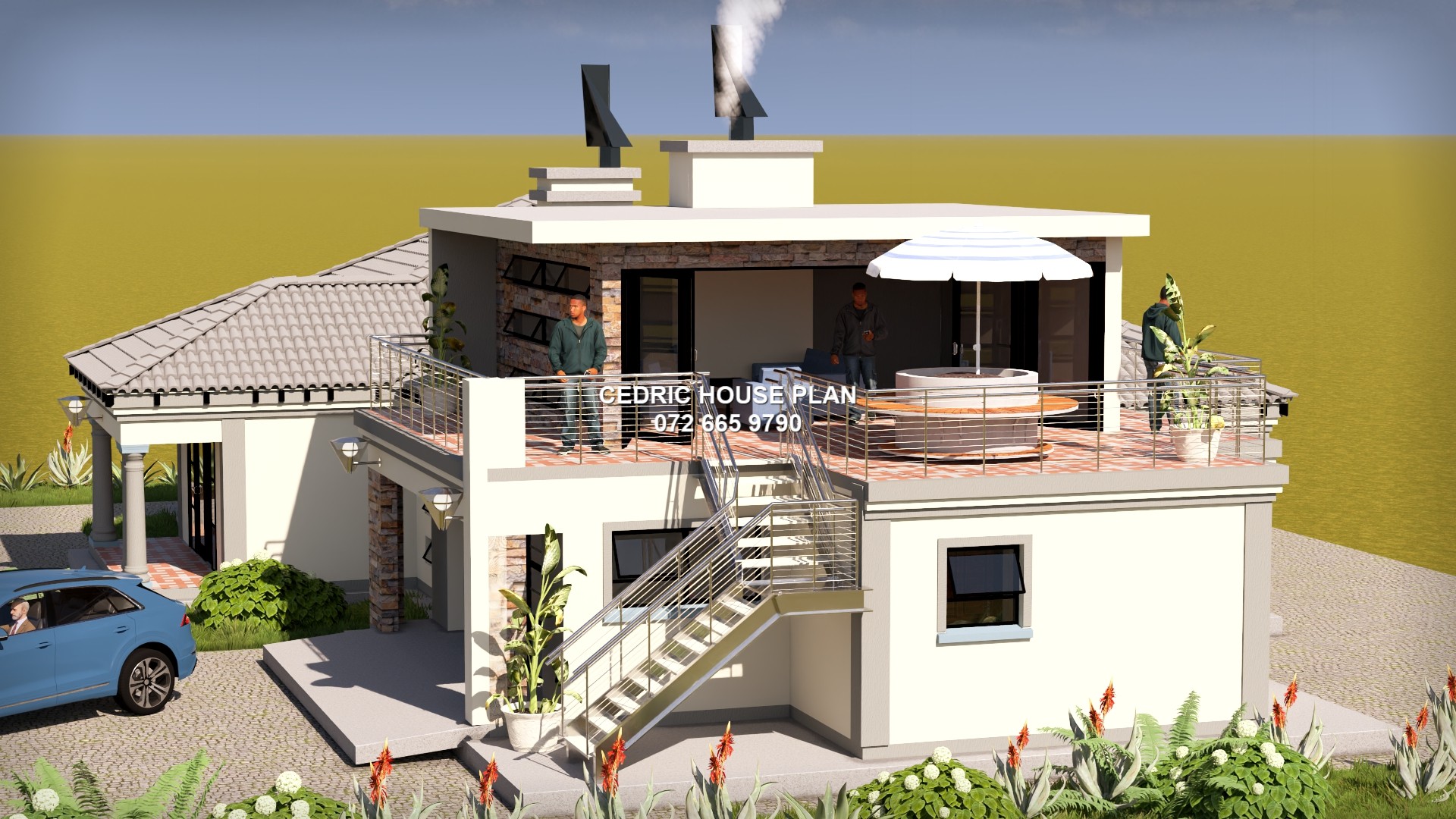

garage top braai

3 bed

2 bath

kitche

lounge

dining

garage

Design Description

GROUND FLOOR:

•Patio

  • Floor Area: 7.827 m²
  • Description: at the back/top left of the house off the kitchen; contains open patio area.

•Kitchen

  • Floor Area: 20.647 m²
  • Description: at the back/top left, opening to the dining area and to the rear patio; contains counters, sink, central island/bench, and stove/cooktop.

•Bedroom

  • Floor Area: 17.370 m²
  • Description: at the back/top centre-right, off the passage and next to the bathroom; contains a bed and built-in cupboard.

•Bathroom

  • Floor Area: 13.582 m²
  • Description: at the back/top right, off the passage beside the top bedroom; contains bath, shower, toilet, and basin.

•Store

  • Floor Area: 3.549 m²
  • Description: at the far right, opening off the garage; contains shelving/counter drawn along one side.

•Laundry

  • Floor Area: 5.303 m²
  • Description: on the right side below the store, opening off the garage; contains laundry tub/sink.

•Garage

  • Floor Area: 45.793 m²
  • Description: on the far right side of the house, accessed from the passage and adjoining the store and laundry; contains large open parking area.

•Passage

  • Floor Area: 6.258 m²
  • Description: central-right, linking the dining area/lounge side to the two right-side bedrooms, bathroom, and garage; contains doors.

•Bedroom

  • Floor Area: 16.987 m²
  • Description: centre-right below the passage, beside the lounge and left of the garage; contains a bed and built-in cupboard.

•Dining area

  • Floor Area: 13.727 m²
  • Description: central, between the kitchen and lounge, with passage to the right; contains dining table and chairs.

•Lounge

  • Floor Area: 29.405 m²
  • Description: front/centre-bottom, below the dining area and left of the lower right bedroom; contains sofas, armchairs, and coffee table.

•Patio

  • Floor Area: 7.562 m²
  • Description: at the front/bottom centre off the lounge; contains open patio area.

•Main bedroom

  • Floor Area: 22.908 m²
  • Description: front/bottom left, opening toward the central living area and beside the WIC and en suite; contains a bed and built-in cupboard.

•Patio

  • Floor Area: 5.976 m²
  • Description: at the front/bottom left off the main bedroom; contains open patio area.

•WIC

  • Floor Area: 9.325 m²
  • Description: left side between the main bedroom and en suite; contains open wardrobe/storage space.

•En suite

  • Floor Area: 9.078 m²
  • Description: far left, opening off the WIC beside the main bedroom; contains bath, shower, toilet, and basin.
3
Bedrooms
2
Bathrooms
1
Levels
280 m²
Floor Area
2
Garages
25 m
Length
18 m
Width
Price
R 3 499,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
