1 BEDROOM WITH GARAGE

1 BATH

1 ENSUITE

GARAGE

Design Description

GROUND FLOOR:

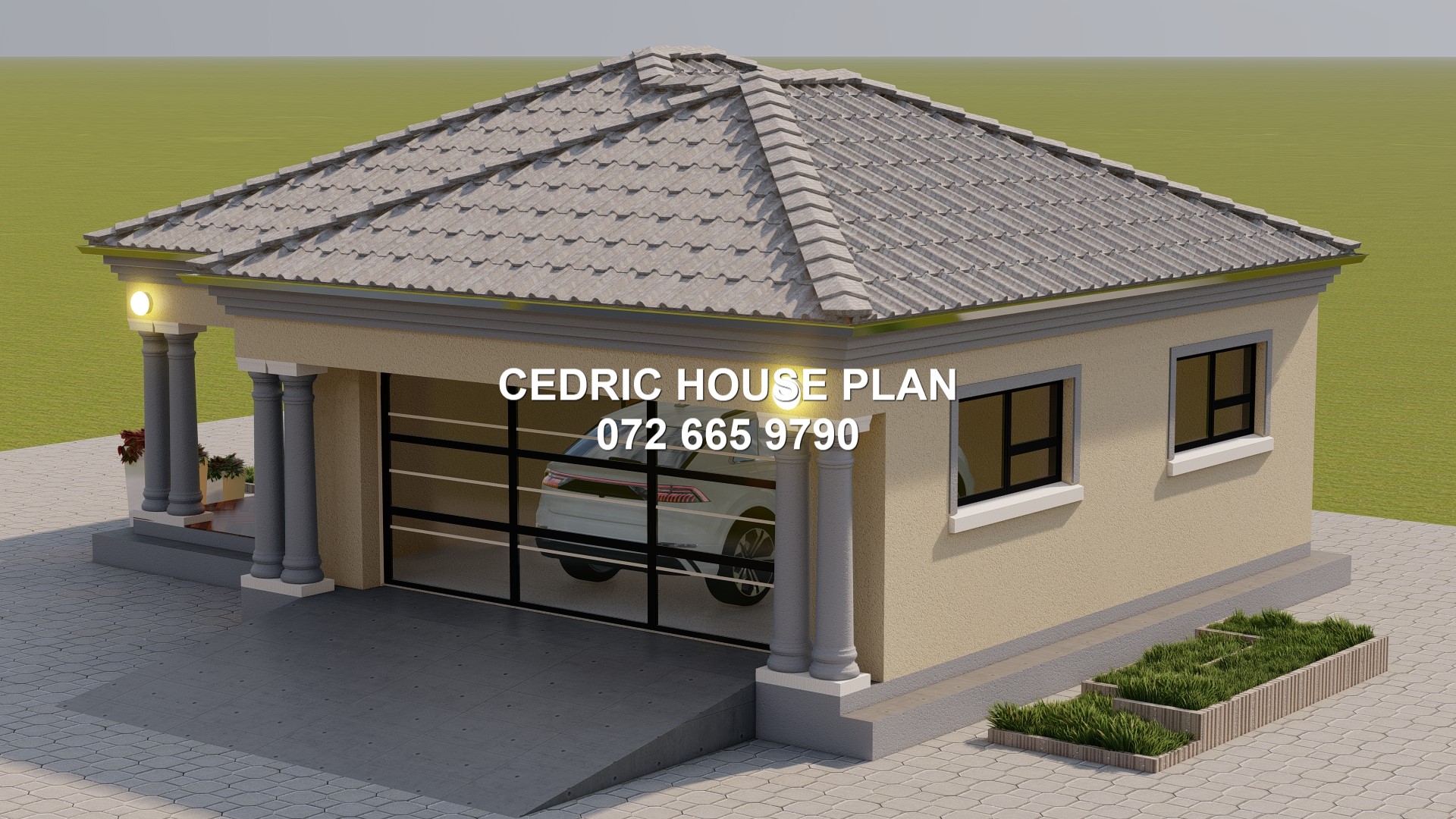

•Double garage

  • Floor Area: 43.907 m²
  • Description: on the left side of the plan, west of the patio and below the bathroom and main bedroom; contains garage door opening at the front/bottom and side windows on the left wall.

•Bathroom

  • Floor Area: 7.533 m²
  • Description: at the top left/centre, above the garage and left of the main bedroom; contains bath, toilet, basin, door, and window.

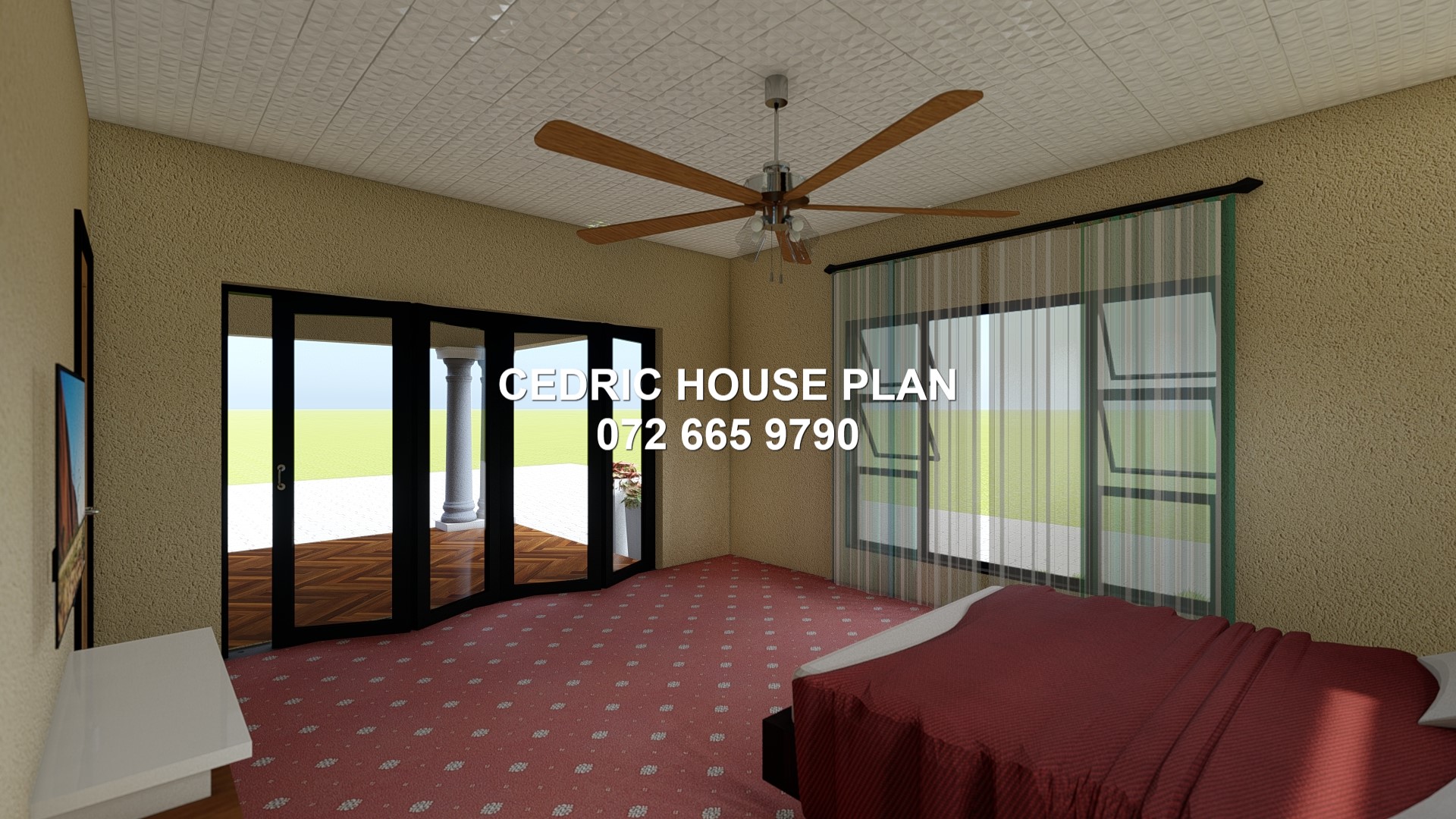

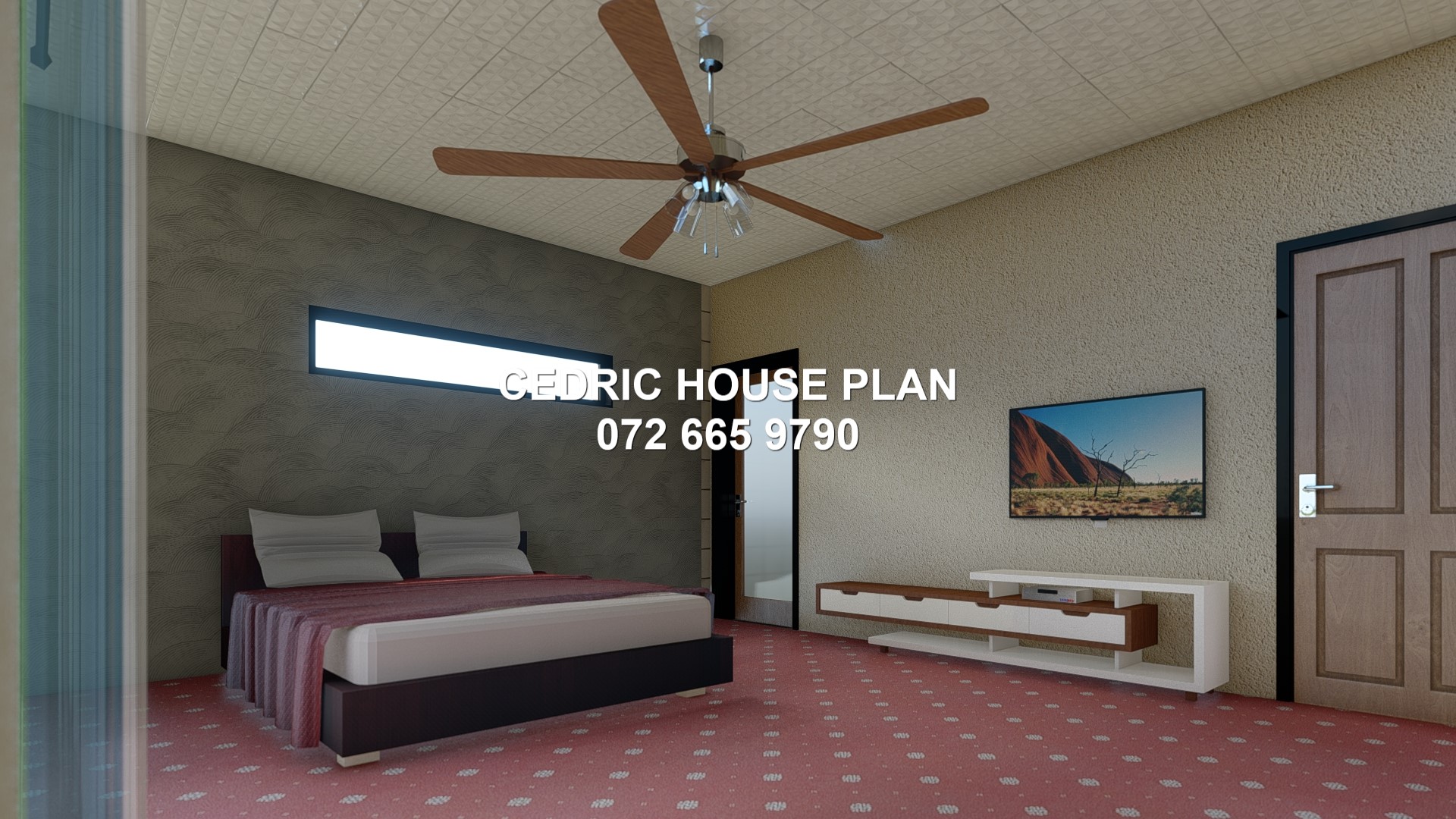

•Main bedroom

  • Floor Area: 21.884 m²
  • Description: at the top right, right of the bathroom and above the patio; contains bed, built-in cupboard, door, and windows.

•Patio

  • Floor Area: 11.006 m²
  • Description: at the lower right/centre, right of the garage and below the main bedroom; contains steps/folding opening at the top side and planter/landscaping elements around the edges.
1
Bedrooms
1
Bathrooms
1
Levels
99 m²
Floor Area
2
Garages
10.2 m
Length
11.2 m
Width
Price
R 1 199,00
PDF download

After secure payment, your full construction PDF is emailed to you and available to download immediately.
